Product Parameters:

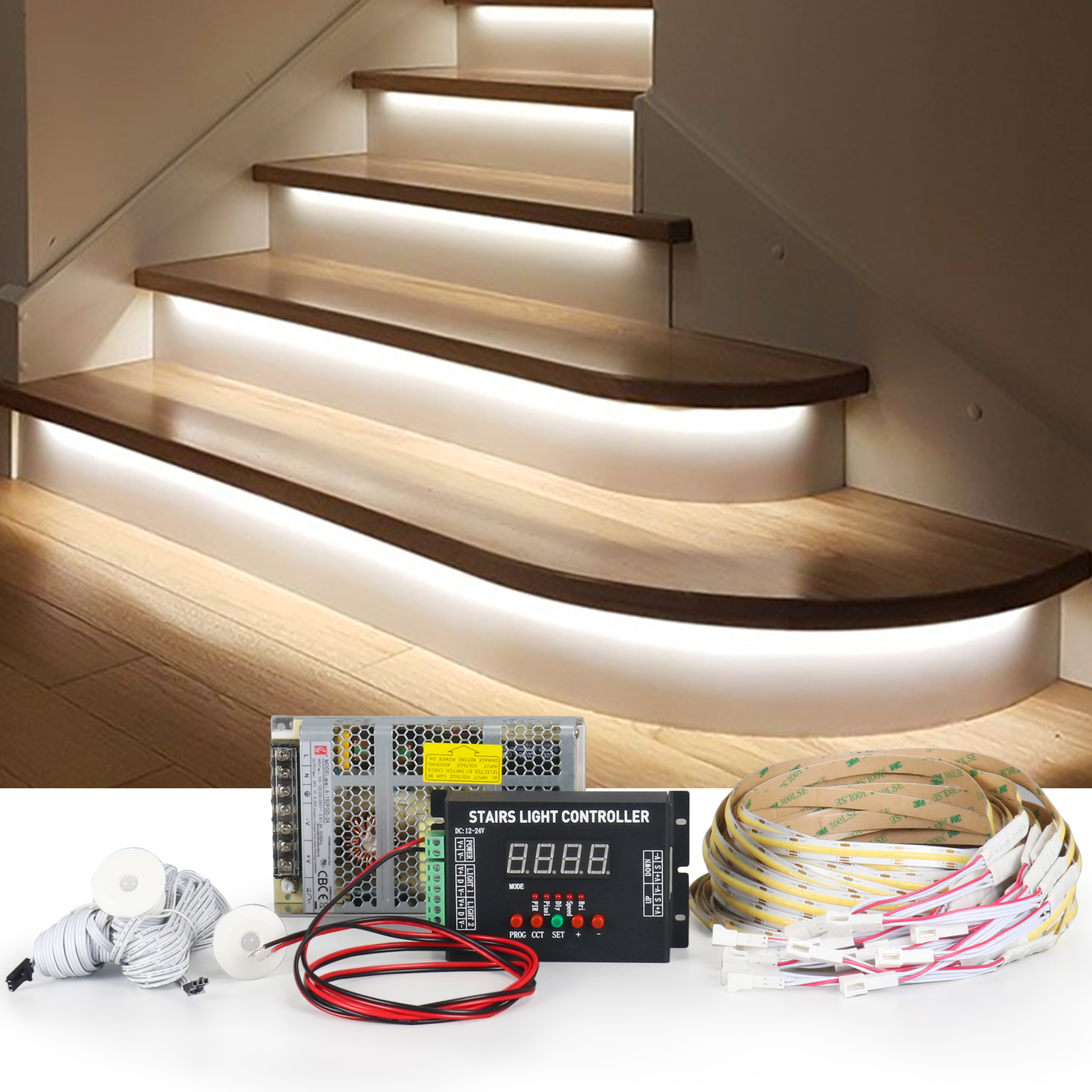

This Product Including the Main Controller, PIR Sensor Switches, LED Stair Lights, Power Supply, Sensor Extension Cable and LED Step Light Extension Cable.

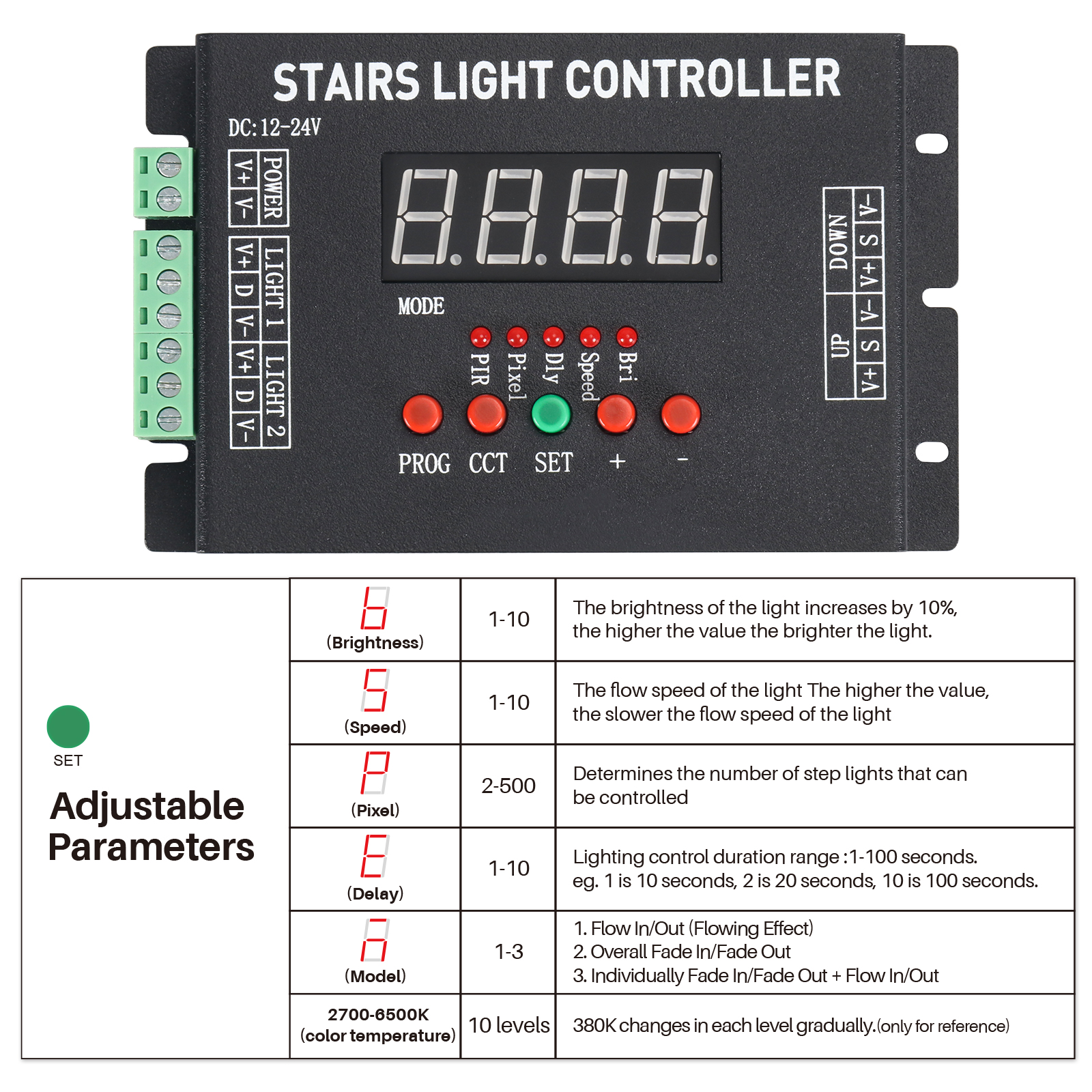

| 1. Parameters of Main Controller (SL001A) | Operating Voltage | 12-24VDC | |
| Max Current | 6A (Ignore this if loading current doesn't go through the main controller.) | ||
| Standby Power Consumption | ＜0.3W | ||
| Control Protocol | Single line to zero code | ||
| Controller Size | L123.3*W77*H28.8 | ||
| Application | Stairs, Corridors, Aisles | ||
| 2. PIR Sensor Switch (SL001B) | Operating Voltage | 12-24VDC |
| Detection Range | ＜2m | |
| Size | φ34.8MM | |
| Standby Power Consumption | ＜0.2W | |
Wire Length | 5M |
3. Stair Light Control Signal Cable (SL002C) *Not included the LED stair lights | Operating Voltage | 24VDC | |
| Max Current | 3A for each light source | ||
| Size | 37.5X10X1.6MM | ||
| 4. T-type Cable | Size of Main Cable | 3X1.5MM² | |
| Size of Branch Cable | 4X0.5MM² | ||
| Distance between Branch Cables | 40CM, 45CM | ||
| Length of Branch Cable | 30CM | ||
| Color | White and Red | ||
| 5. Power Supply | Item | A-150FGD-24V | |
Input | 100-120/200-240V | ||
Output | 24V 6.25A | ||
| Length of Branch Cable | 30CM | ||
| Color | White and Red | ||
6. COB LED Strip Light (FCOB608DC-24V-M10） | Voltage | DC24V | |
PCB Width | 10MM | ||
Color Temperature | 2700K-6500K | ||
Length | 1M | ||
Cuttable Length | 26.33mm/Cut | ||
