Home›Products›IR001D IR Hand Sensor Switch with dimming and memory function
IR001D IR Hand Sensor Switch with dimming and memory function — image 1 IR001D IR Hand Sensor Switch with dimming and memory function — image 2 IR001D IR Hand Sensor Switch with dimming and memory function — image 3 IR001D IR Hand Sensor Switch with dimming and memory function — image 4 IR001D IR Hand Sensor Switch with dimming and memory function — image 5
5 images
Product details

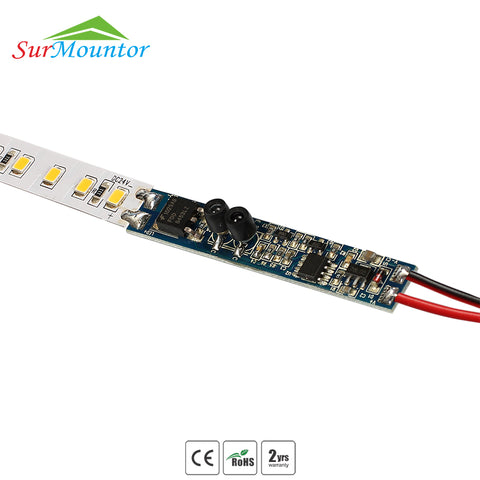

IR001D IR Hand Sensor Switch with dimming and memory function

Motion LED IR Sensor Hand Wave Dimmer Sensor Switch IR Sensor PCB Module IR Hand Touch Dimming Sensor Light Switch With Memory Function


Product Description:

  • LED strip is originally “off” and the LED indicate light on the sensor PCB is “on” when the power is connected on.
  • The light will be on when hand passing over the IR sensor switch within 10cm detection range, and will be off when hand passing over again.
  • Hold the hand over the IR sensor more than 3s, to adjust the LED brightness dimming from 1% to 100%.
  • The IR sensor will memorize the status of the LED brightness in 12V–24VDC.
  • The IR sensor switch will turn on or off the led light with above repeatable steps.

Product Parameters:

Input Voltage 12-24V Dimension 55mm x 10mm.
Current 8A Watt 96W (12V); 192W(24V)
Detection Range 0.5cm≤Detection Range≤10cm Certificated CE, RoHS
PCB Color Blue Function Automatically switch ON/OFF when the hand pass over, dimming and memory function.

Product Installation:

The two IR diodes head should be put out of PC cover as the picture below:
Step 1: Drill 2 holes with a diameter of 5mm in PC cover.
Step 2: Place the detector heads into the holes with a diameter of 5mm.
Step 3: Connect wires to the input end and output end of the conctrol PCB.
Connection Guidance :

Product Certificatation:

Low Voltage 12V Mini Micro Smart Switch Automatic Turn Off Pir Sensors Dc 24V Infrared Pir Motion Sensor For Long Distance

Relative micro PIR sensor motion sensor 12v/24v for led strip led aluminum profile

Low Voltage 12V Mini Micro Smart Switch Automatic Turn Off Pir Sensors Dc 24V Infrared Pir Motion Sensor For Long Distance


Packing & Delivery:

Custom Packing and Custom Label are available as request !

Low Voltage 12V Mini Micro Smart Switch Automatic Turn Off Pir Sensors Dc 24V Infrared Pir Motion Sensor For Long Distance


Specification

Product parameters

Input Voltage 12-24V Dimension 55mm x 10mm.
Current 8A Watt 96W (12V); 192W(24V)
Detection Range 0.5cm≤Detection Range≤10cm Certificated CE, RoHS
PCB Color Blue Function Automatically switch ON/OFF when the hand pass over, dimming and memory function.
Resources

Downloads

Specification · PDFIR001D IR Hand Sensor Switch with dimming and memory functionGenerated from source specification tableDownload ↓
