Applications

Where the N1207 belongs

Architectural facade signage using N1207

Signage that stays sharp at 50 m

A 12 × 7 mm cross-section keeps the visual weight subtle at close range, while 300 LEDs/m and 1300 lm/m brightness deliver a continuous, seamless line legible from across the street. The IP67 co-extruded jacket resists UV, dust and rain — 5-year outdoor warranty.

Cove lighting without the dots

The dual-material co-extrusion diffuses individual LED points into an even glow — no more counting hotspots in your ceiling reveal. Frosted or milky silicone finishes let you pick soft warm cove ambience or high-output daylight punch.

N1207 in cove lighting application
N1207 free-cut installation

Cut every 6 LEDs — no reflow, no re-solder

A 20 mm cut interval unlocks precise-length runs for retail letters, sculptural interiors and stage design. Reusable end-caps and solder-free quick-connectors let install teams re-terminate a run on-site.

Specification

Parameter

Optical

CCT
2700 K · 3000 K · 4000 K · 6000 K
CRI (Ra)
≥ 90
Beam angle
160°
Luminous flux
1200 (WW) / 1250 (NW) / 1300 (CW) lm/m
MacAdam (SDCM)
≤ 3
Emitting direction
Side-emit

Electrical

Input voltage
24 V DC
Power
19.2 W / m
LED type
SMD 2110 (Sanan)
LED density
300 LEDs / m
Cut unit
6 LEDs (≈ 20 mm)
Max run length
10 m single-end feed

Mechanical

Dimensions
12 × 7 mm (W × H)
Reel length
5 m / 10 m / 20 m / 30 m
Bending direction
Side (horizontal)
Bending radius
≥ 100 mm
Lens
Diffused silicone — Frosted or Milky
Mounting

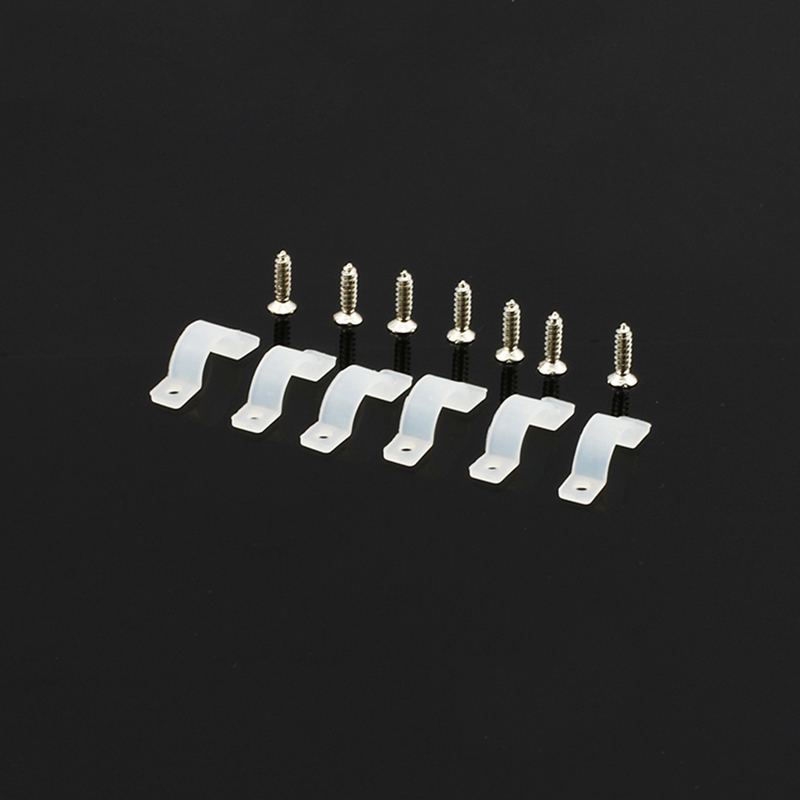

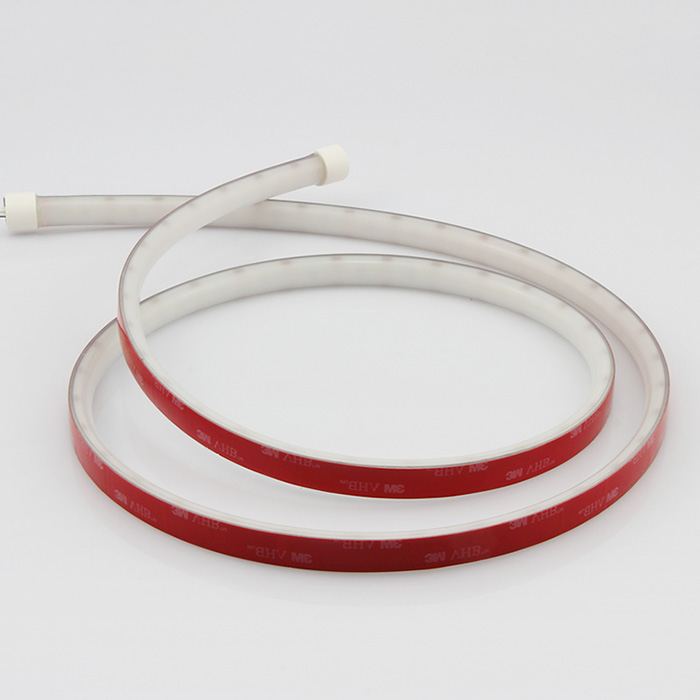

3M VHB adhesive · aluminum profile · clips

Environmental

IP rating

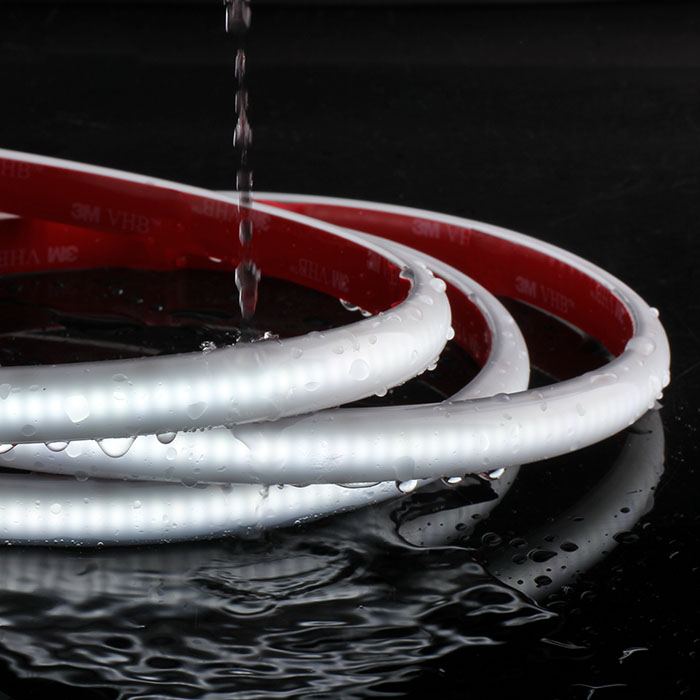

IP67 (not for continuous underwater use)
Operating temp.
−20 °C to +50 °C
Life span
> 50,000 hours (L70)
Warranty
5 years
Certification
CE · RoHS · REACH
Sustainability
UV & chemical resistant · low-halogen
Resources

Downloads

Ready to shape your light?

Our engineers respond to spec-grade inquiries within one business day — samples ship worldwide.
