Product Parameters:

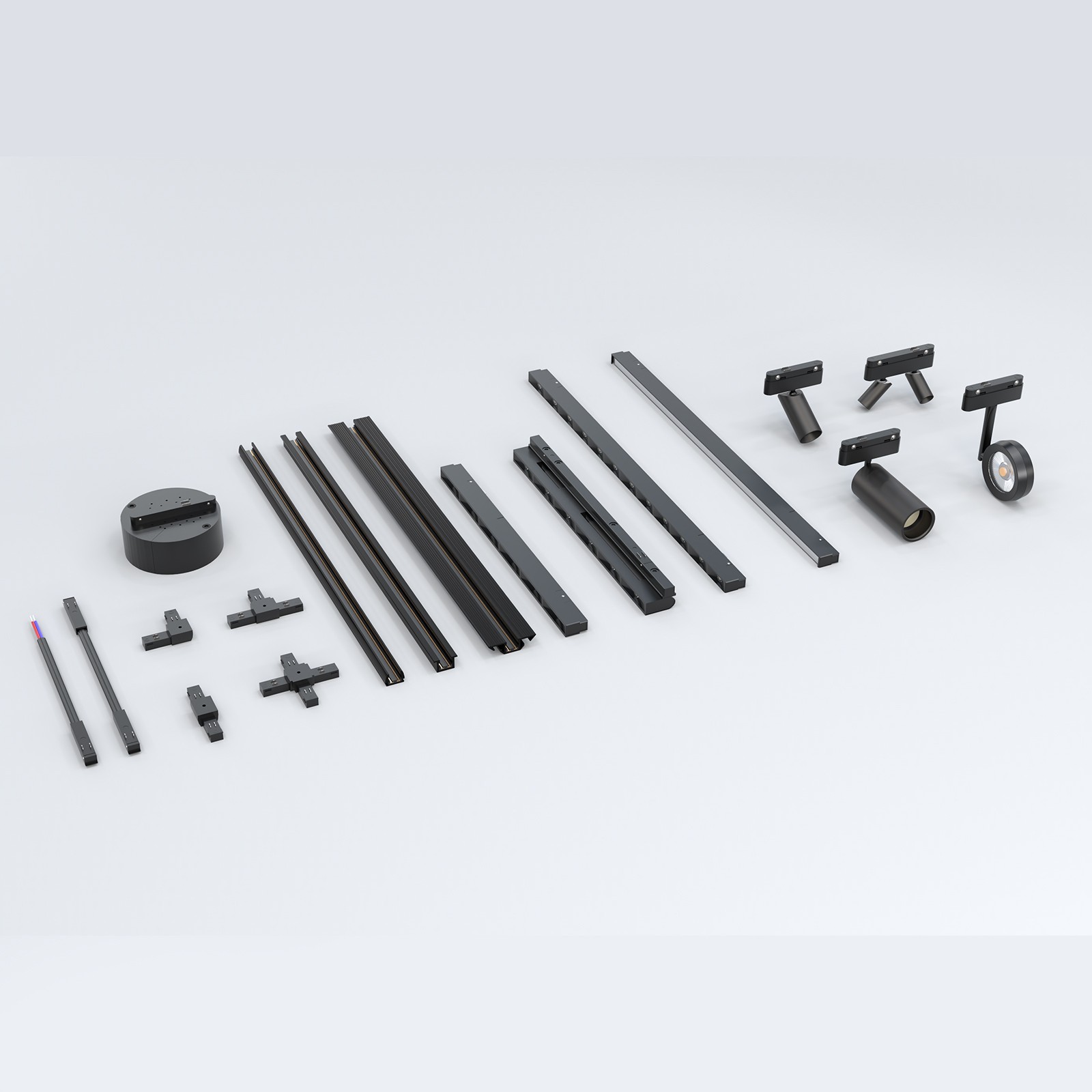

| Model Number | Product Name | Description | |

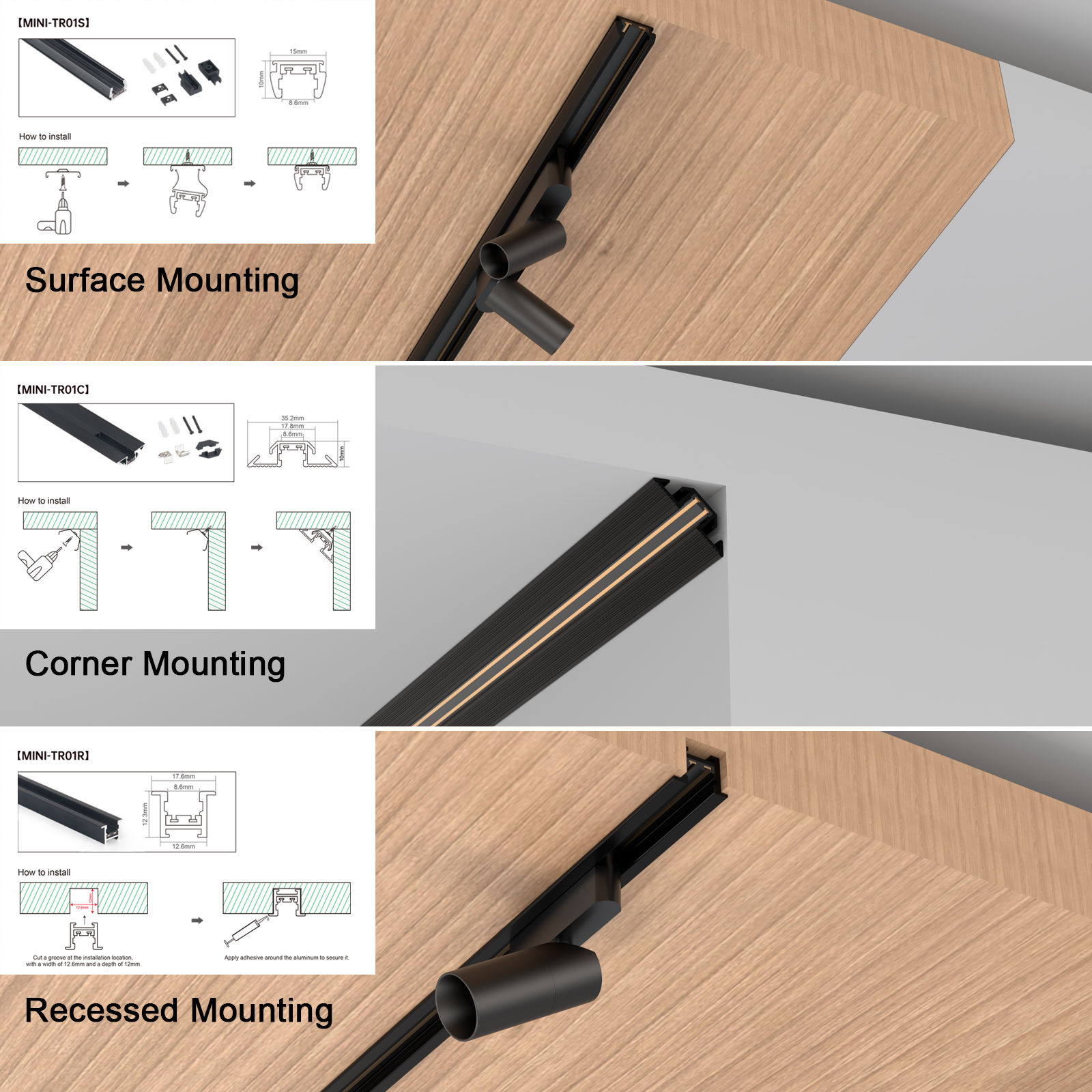

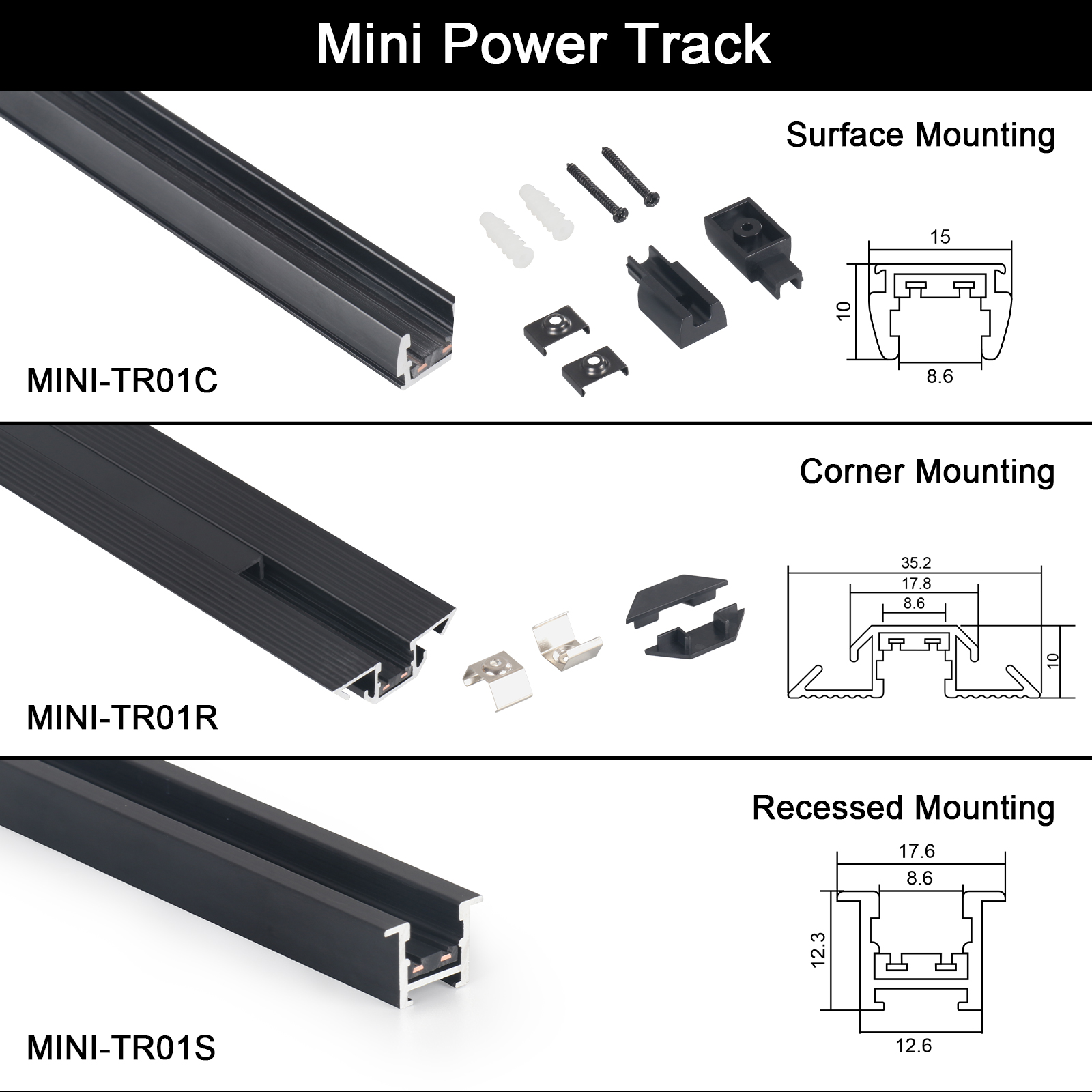

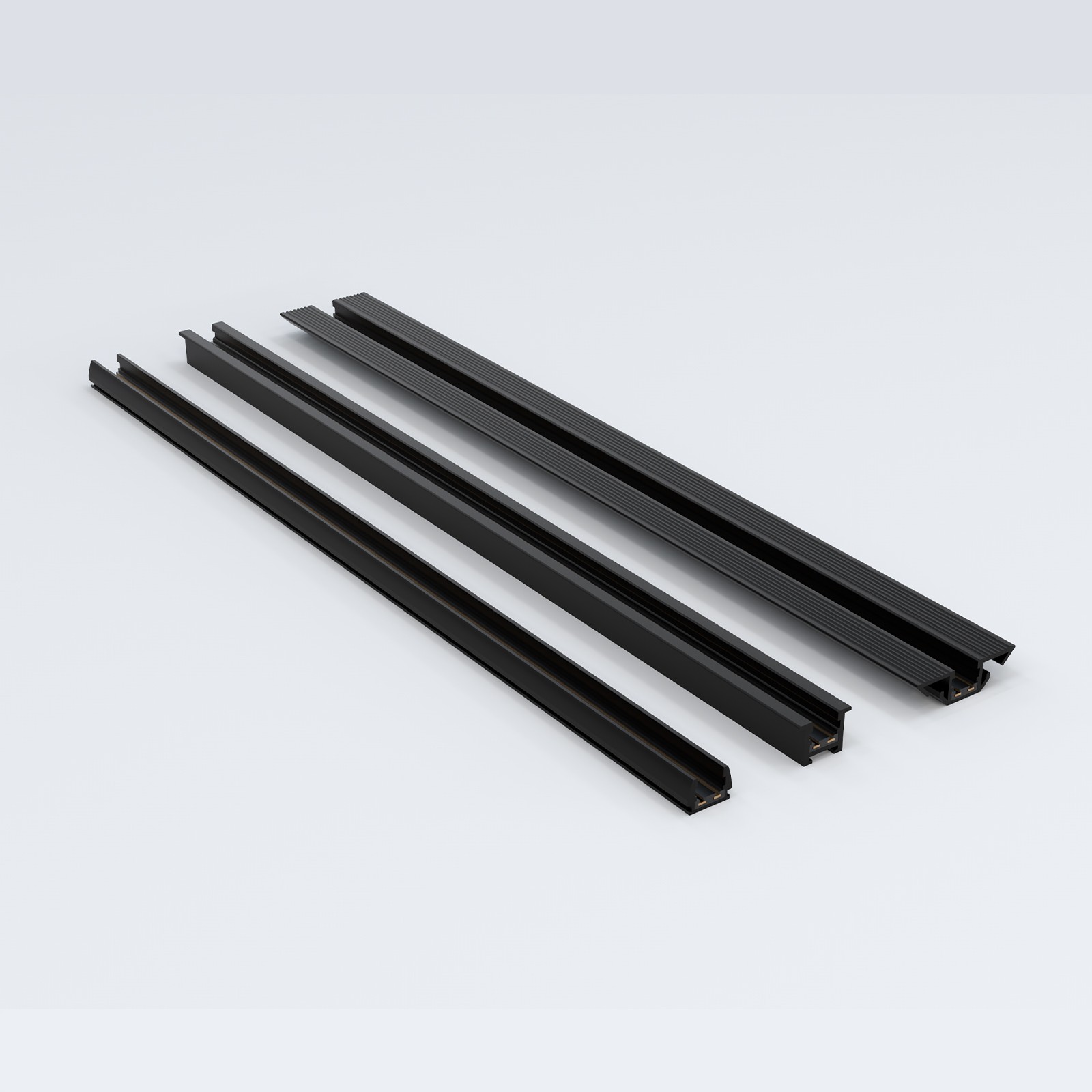

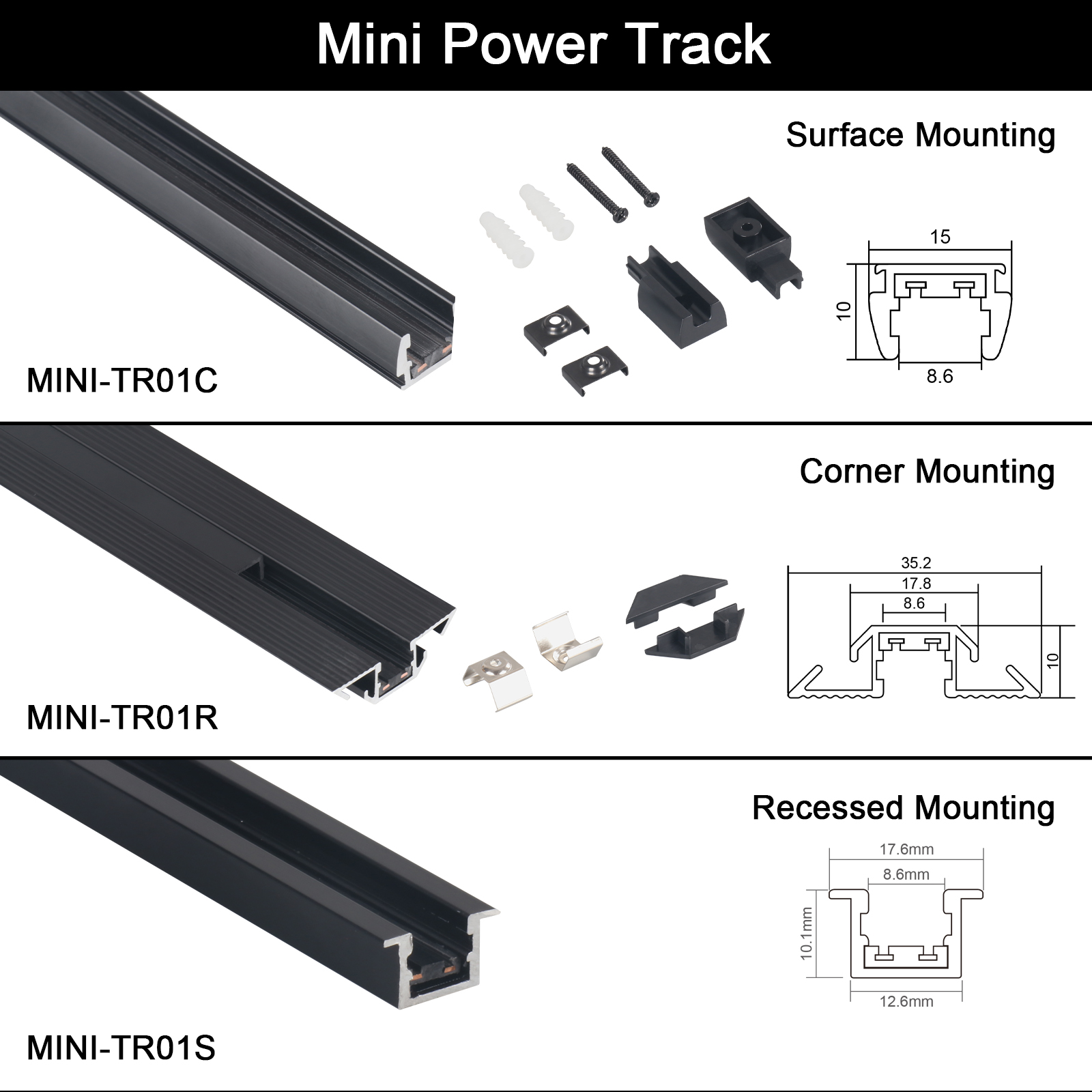

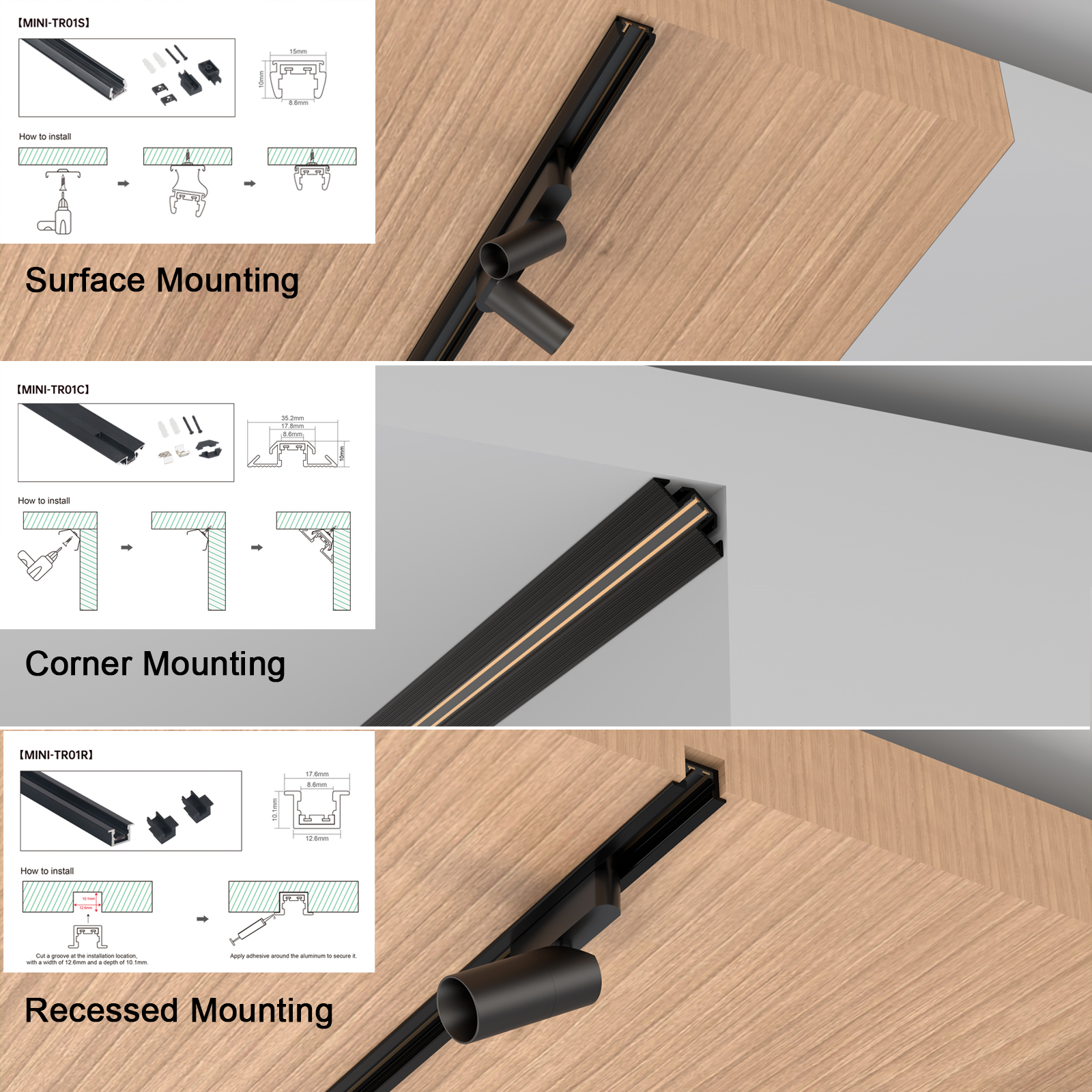

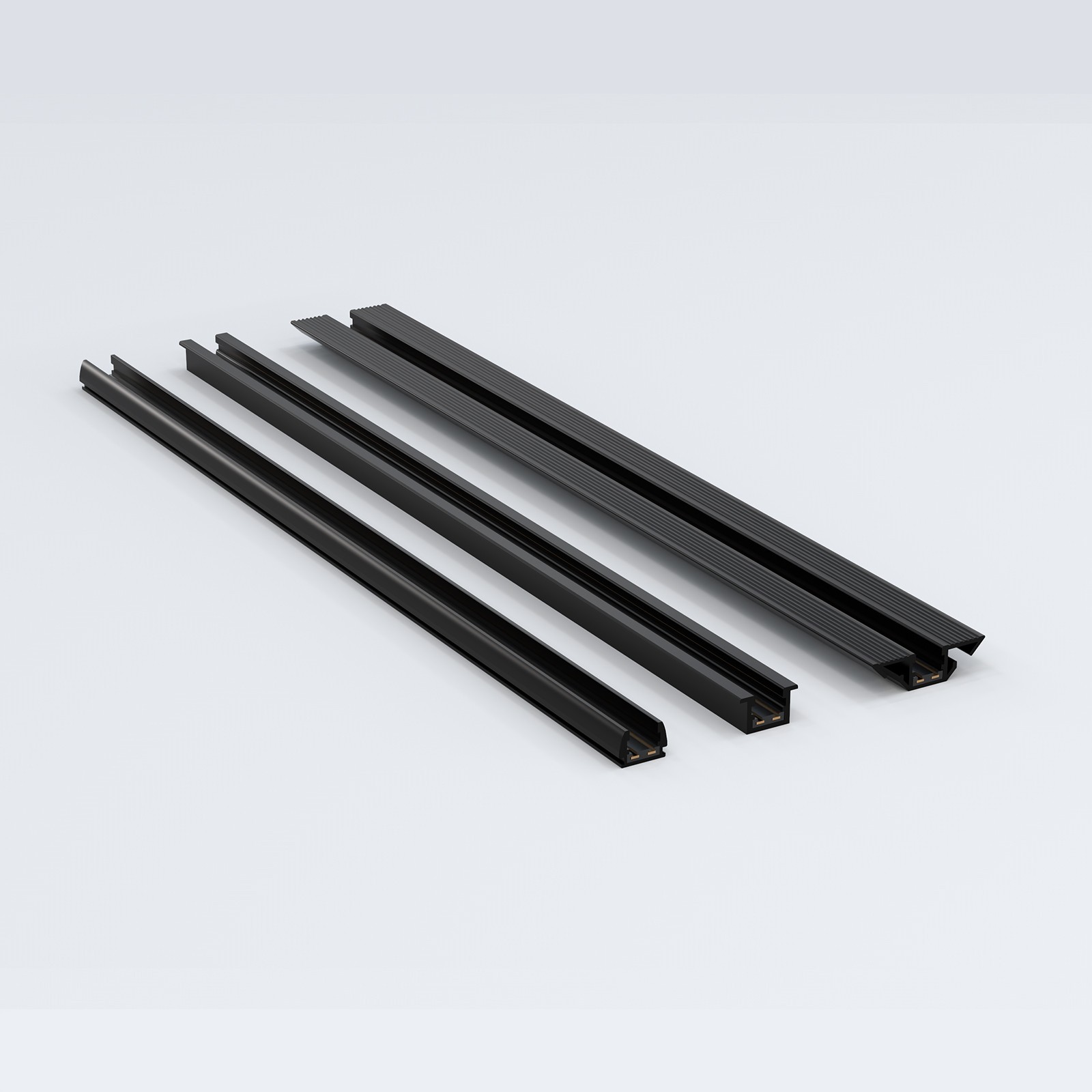

| MINI-TR01S | Power Track | Surface-mounted with Clip-on Design | Surface processing: Spraying surface 2-Conductor Pure Copper Busbar Size: L1000*W15*H10mm L2000*W15*H10mm |
| MINI-TR01C | Corner-mounted with Clip-on Design | Surface processing: Spraying surface 2-Conductor Pure Copper Busbar Size: L1000*W35.2*H10mm L2000*W35.2*H10mm | |
| MINI-TR01R | Recessed Installation | Surface processing: Spraying surface 2-Conductor Pure Copper Busbar Size: L1000*W17.6*H12.3mm L2000*W17.6*H12.3mm | |

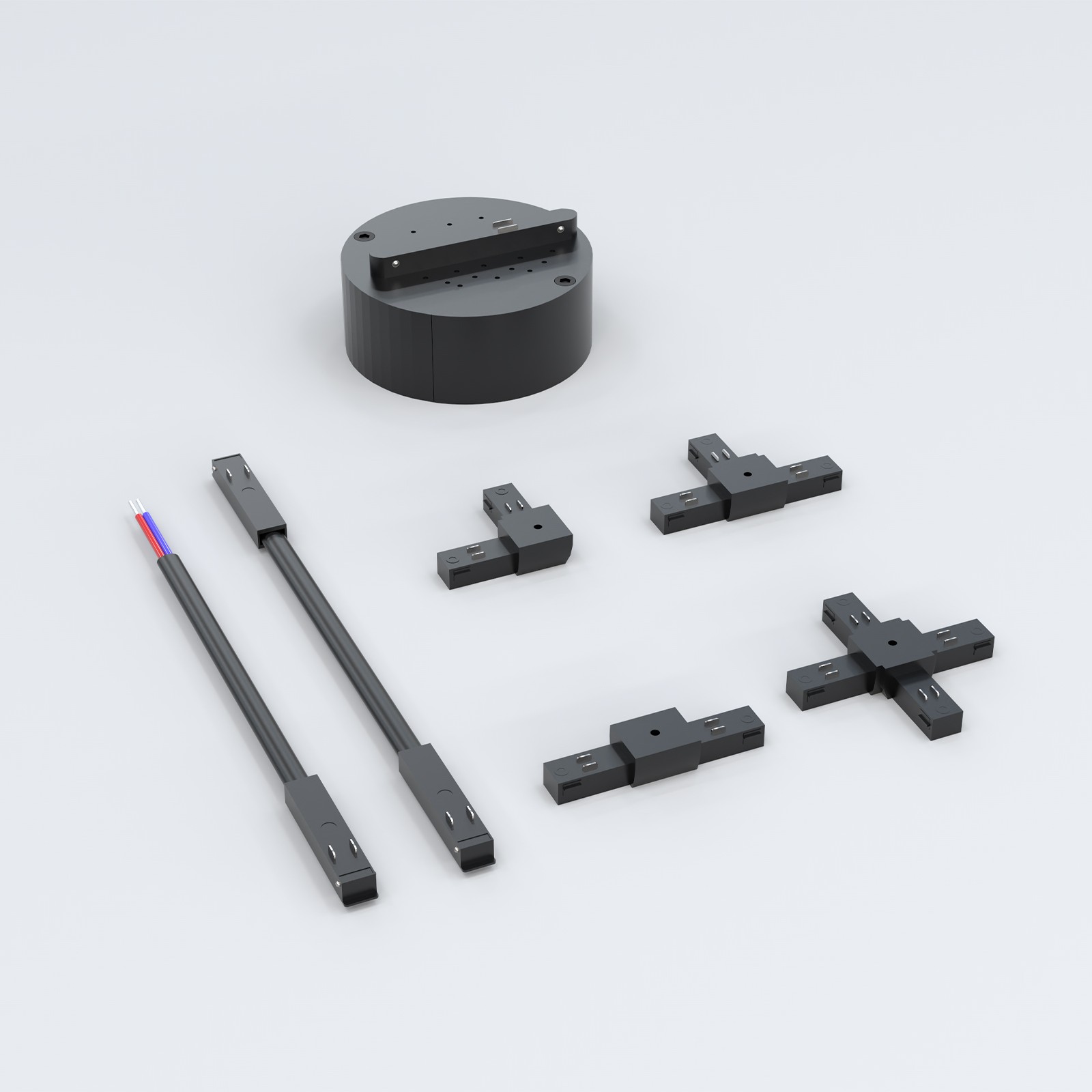

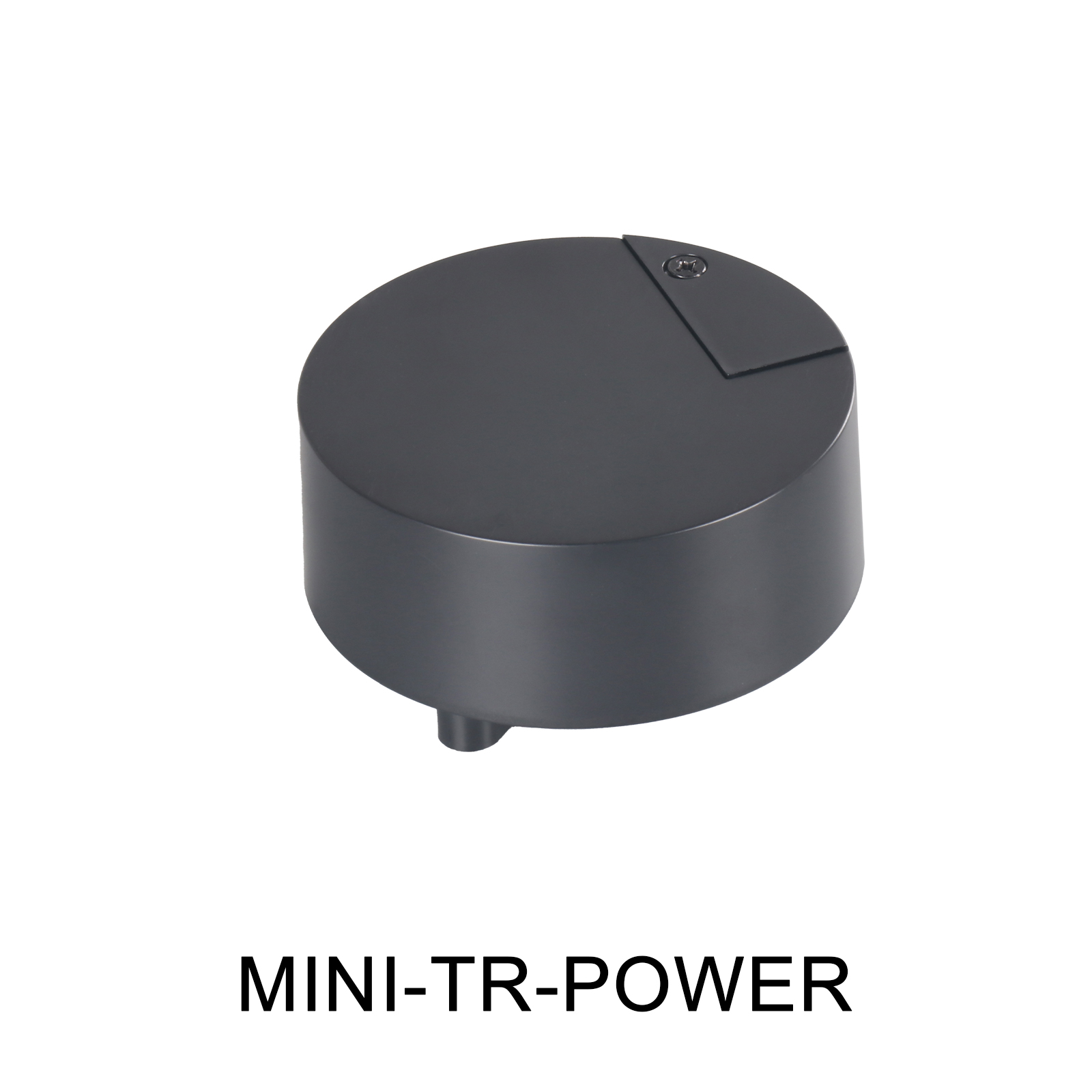

| MINI-TR-POWER | Power Input Module | Integral Power Source | Voltage: DC24V Watt: 80W Size: Φ74*H35.5mm |

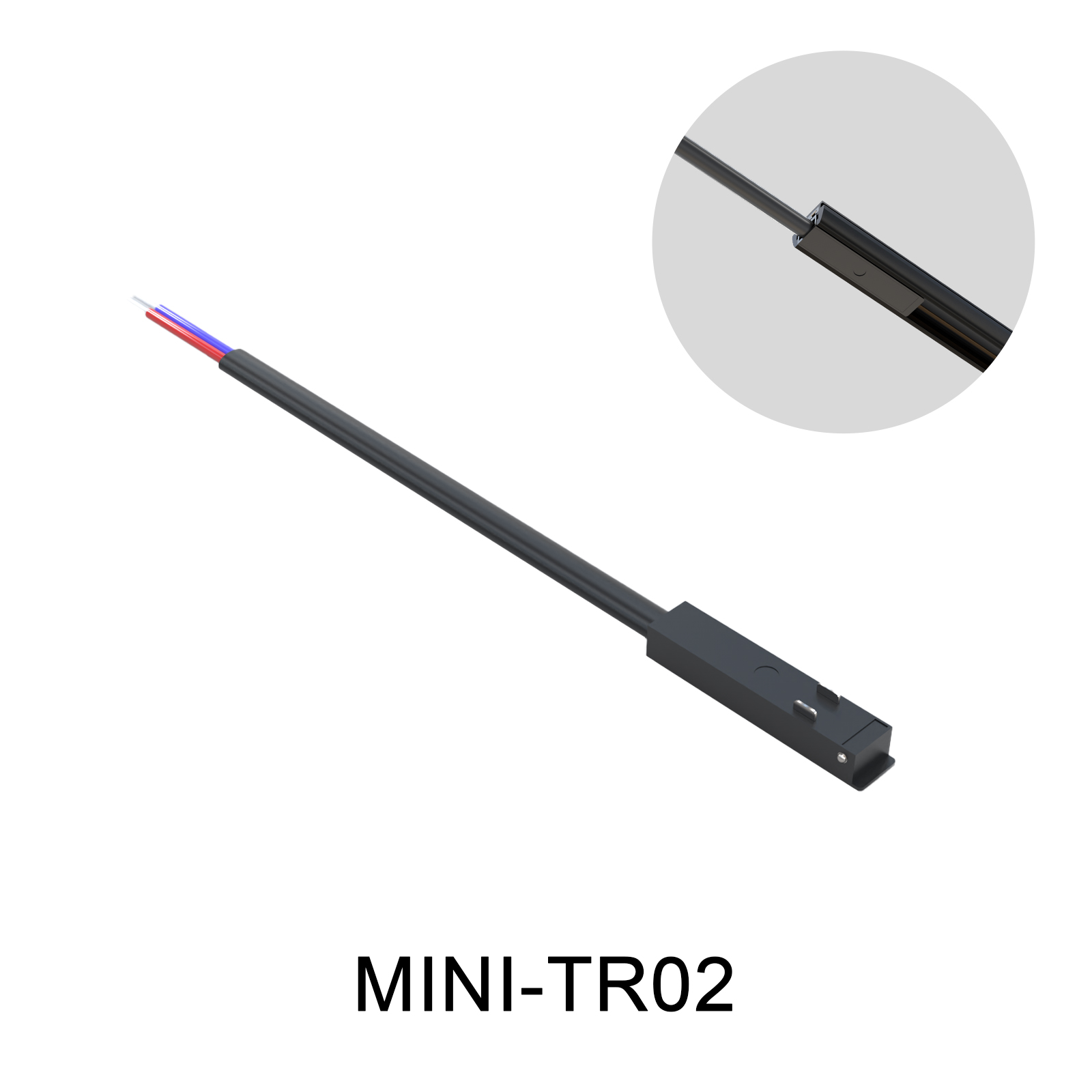

| MINI-TR02 | Power Input Cable | Input Conductive Module Connector | |

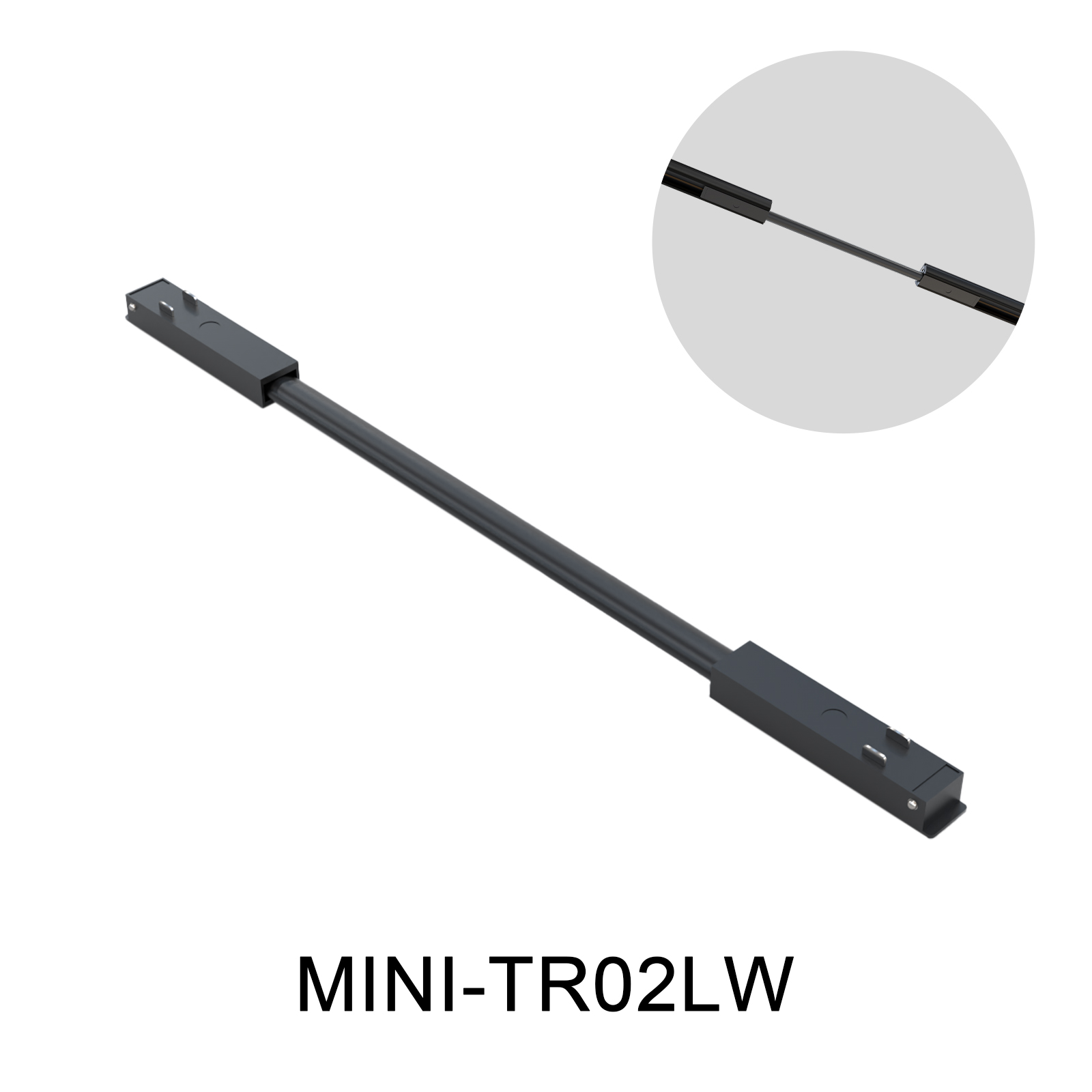

| MINI-TR02LW | Power Track Connector Components | L Shape Connector with Wire | Vertical Conductive Module Cable Connector |

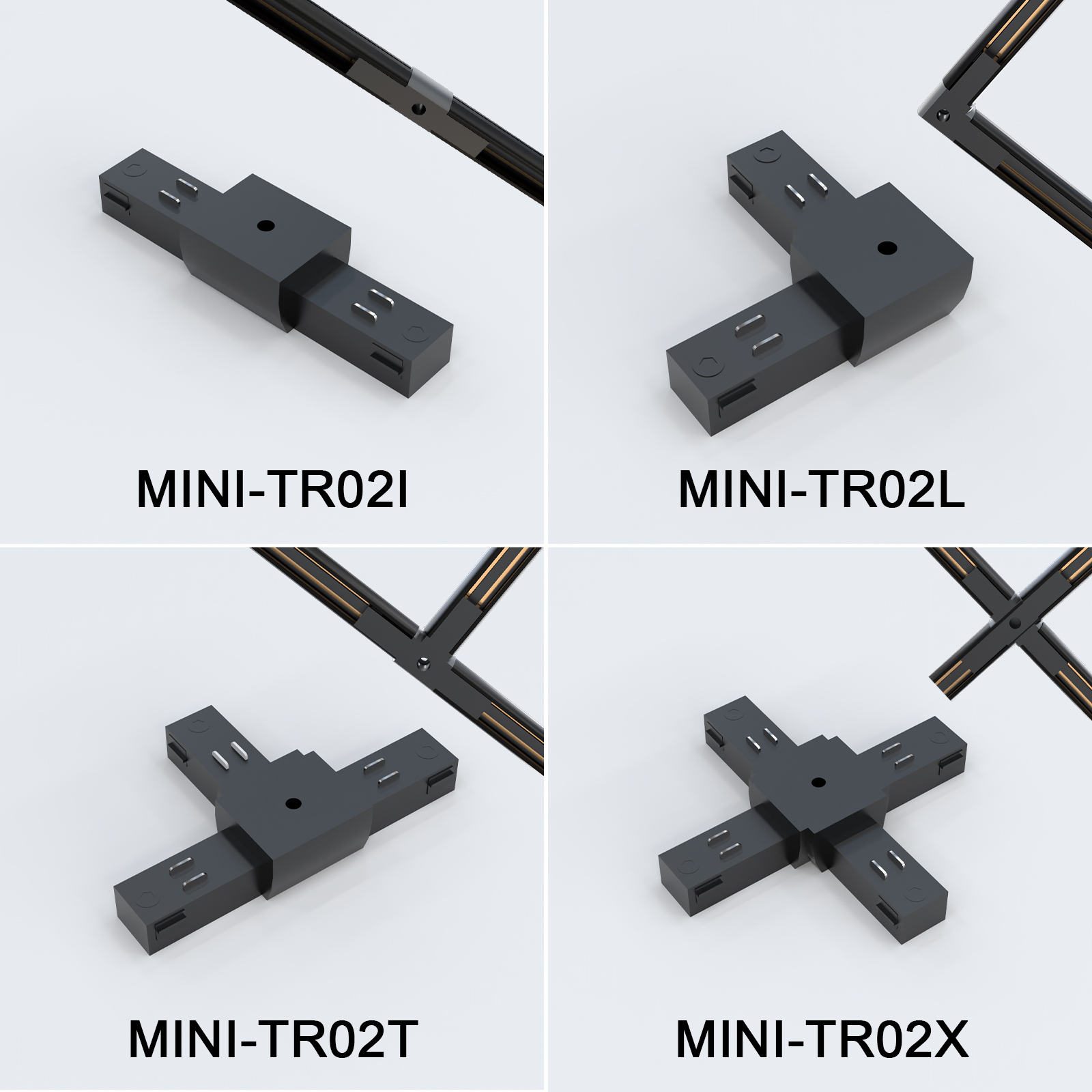

| MINI-TR02I | I-Shaped Connector | Straight-Through Conductive Module Connector | |
| MINI-TR02L | L-Shaped Connector | Corner Conductive Module Connector | |
| MINI-TR02T | T-Shaped Connecto | Three-Way Conductive Module Connector | |
| MINI-TR02X | X-Shaped Connector | Four-Way Conductive Module Connector | |

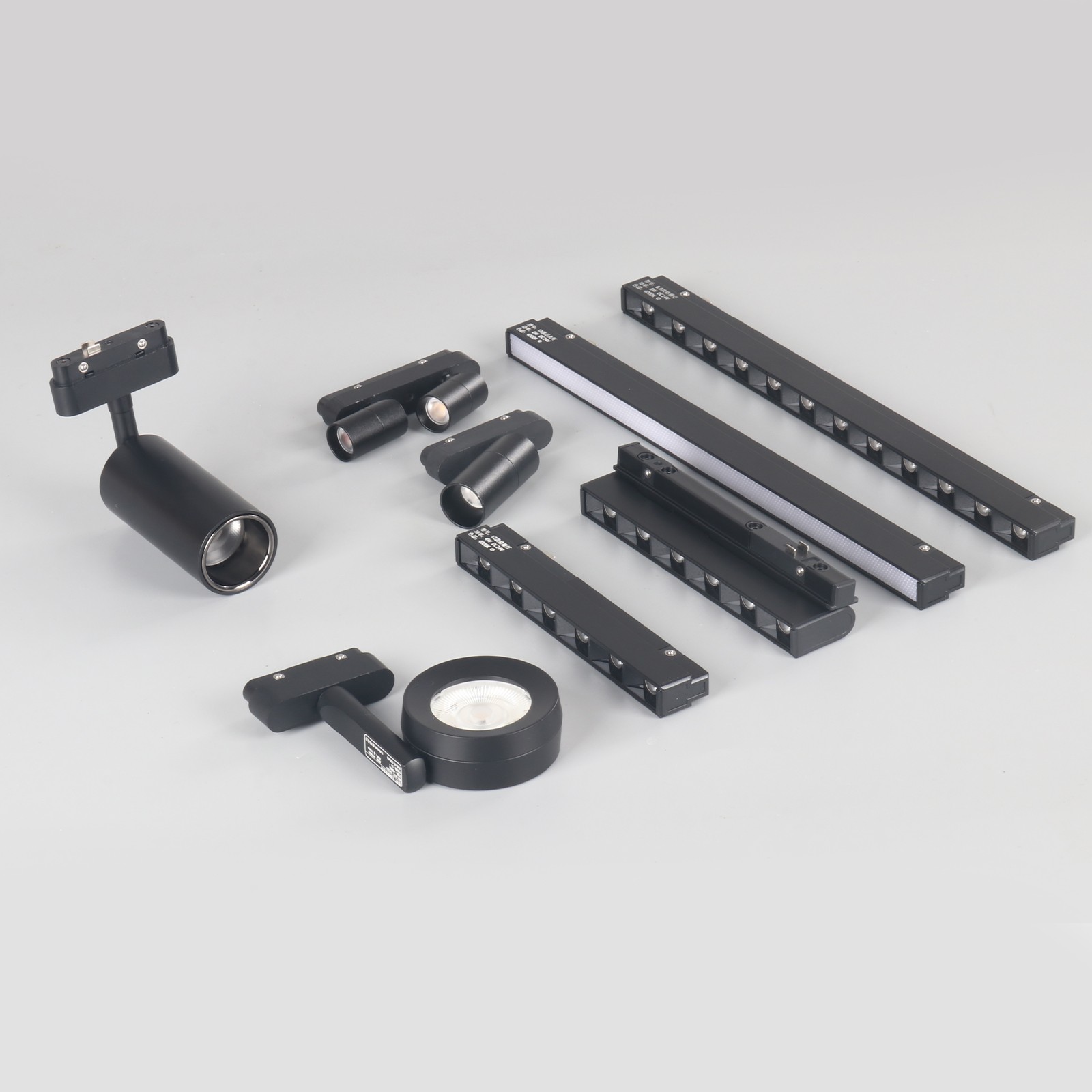

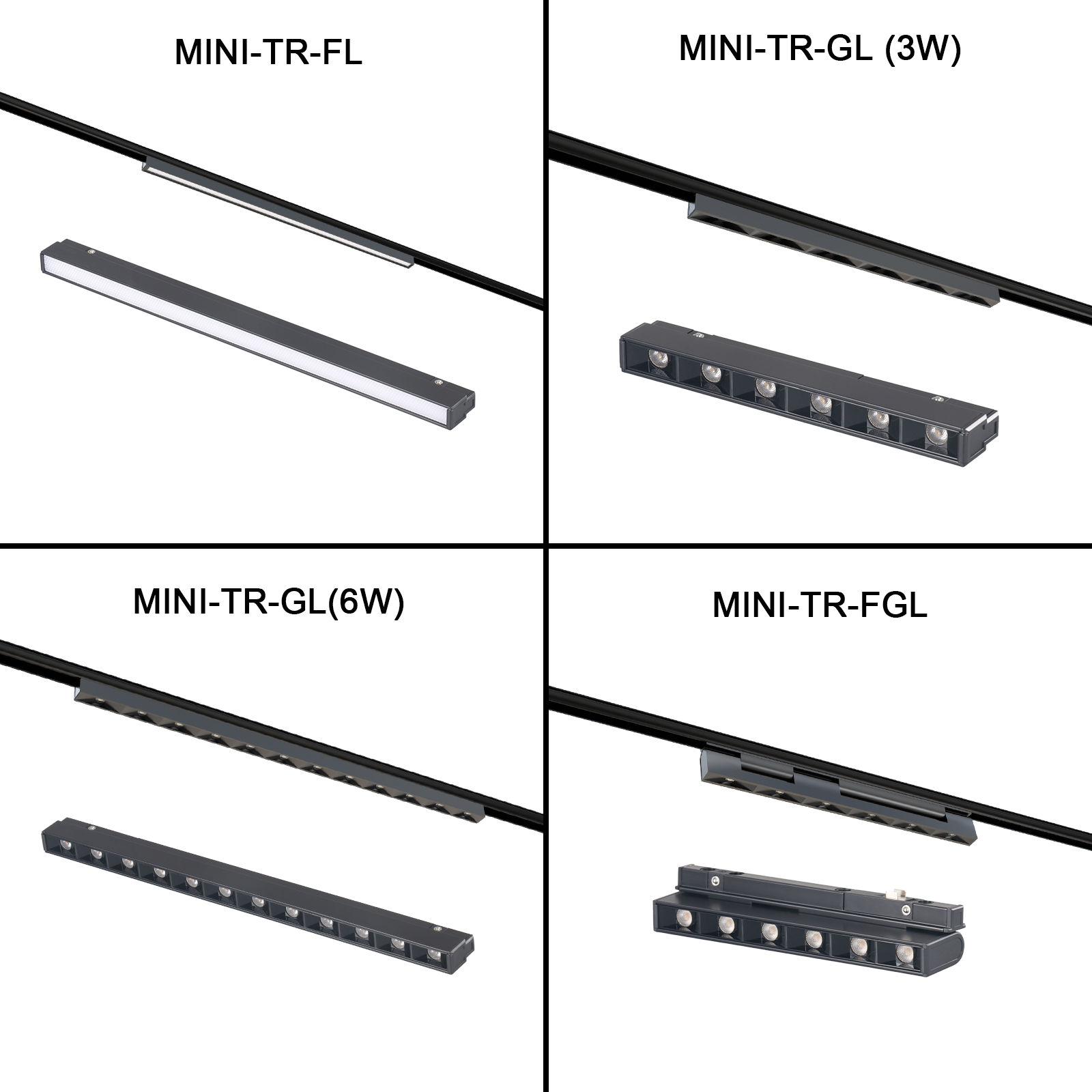

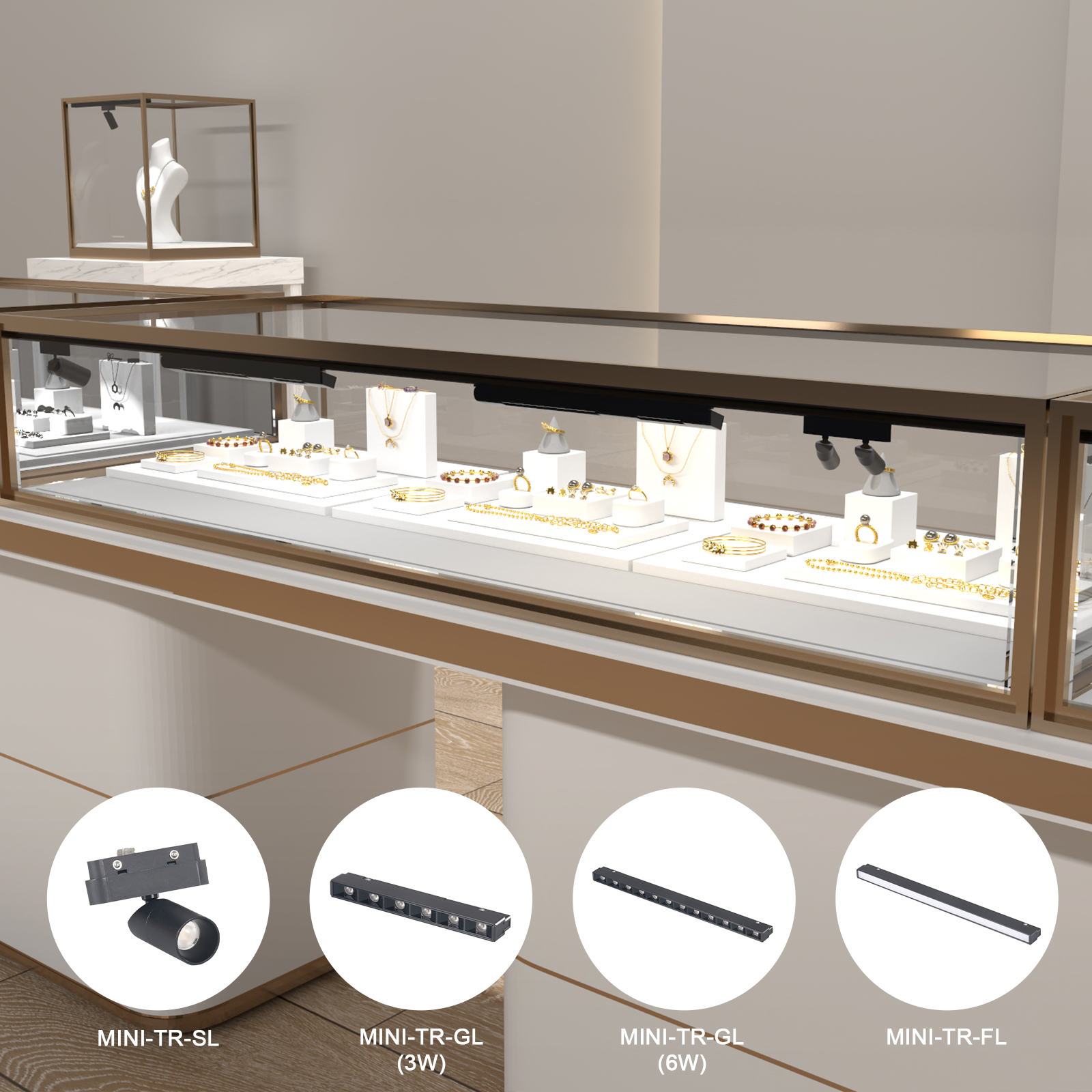

| MINI-TR-FL | LED Lighting Components | Flood Light | Voltage: DC24V Power: 6W Size: L231.3*W11.8*H19.5mm CCT: 3000K/4000K/6000K Lumen: 250LM/260LM/255LM |
| MINI-TR-GL (3W) | Grille Light | Voltage: DC24V Power: 3W Size: L117.3*W11.8*H19.5mm CCT: 3000K/4000K/6000K Lumen: 190LM/200LM/195LM Beam Angle: 15°/24°/36 | |
| MINI-TR-GL (6W) | Voltage: DC24V Power: 6W Size: L231.3*W11.8*H19.5mm CCT: 3000K/4000K/6000K Lumen: 380LM/400LM/395LM Beam Angle: 15°/24°/36 | ||
| MINI-TR-FGL | Fold Grille Light | Voltage: DC24V Power: 3W Size: L117*W11.8*H33mm CCT: 3000K/4000K/6000K Lumen: 170LM/180LM/175LM Beam Angle: 15°/24°/36 | |

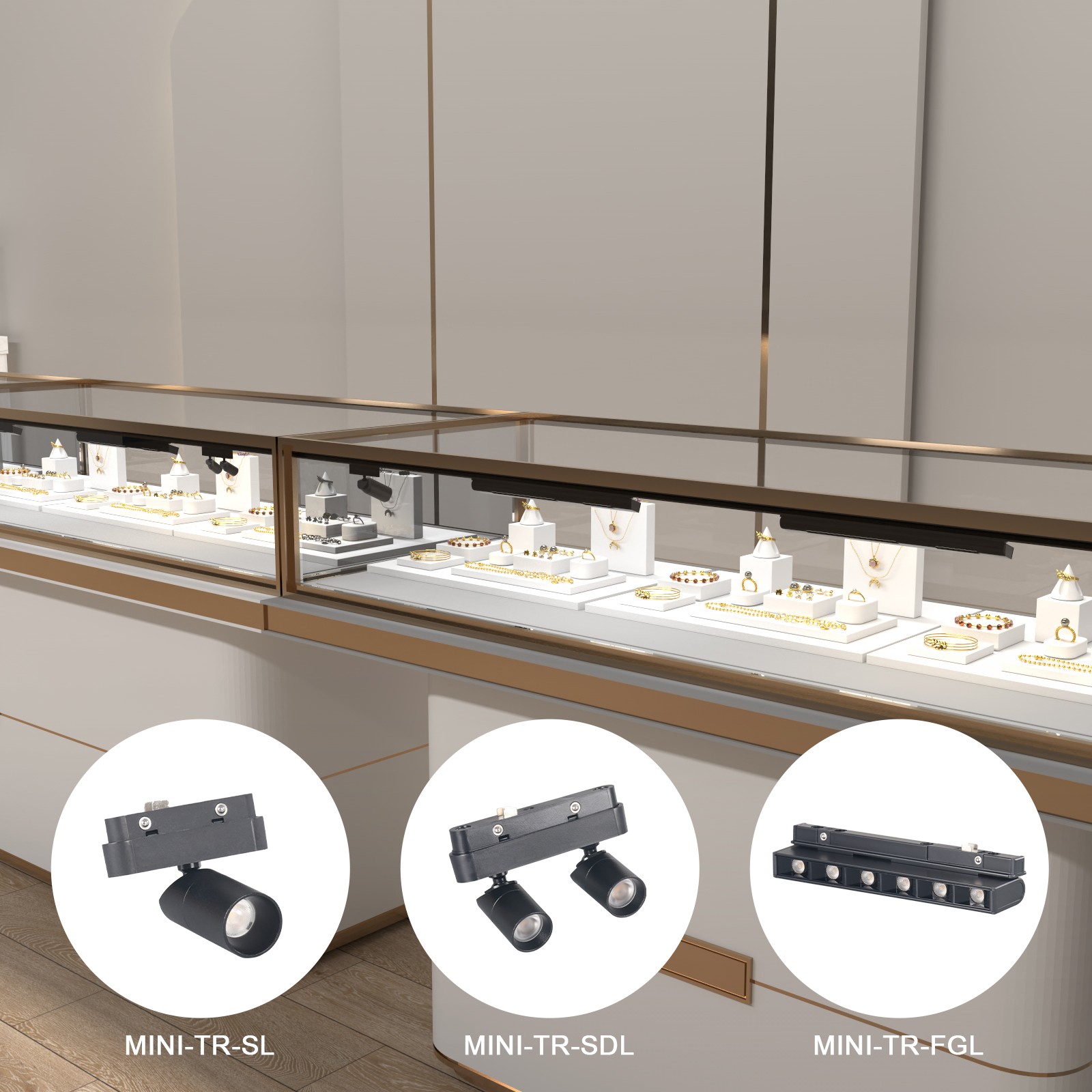

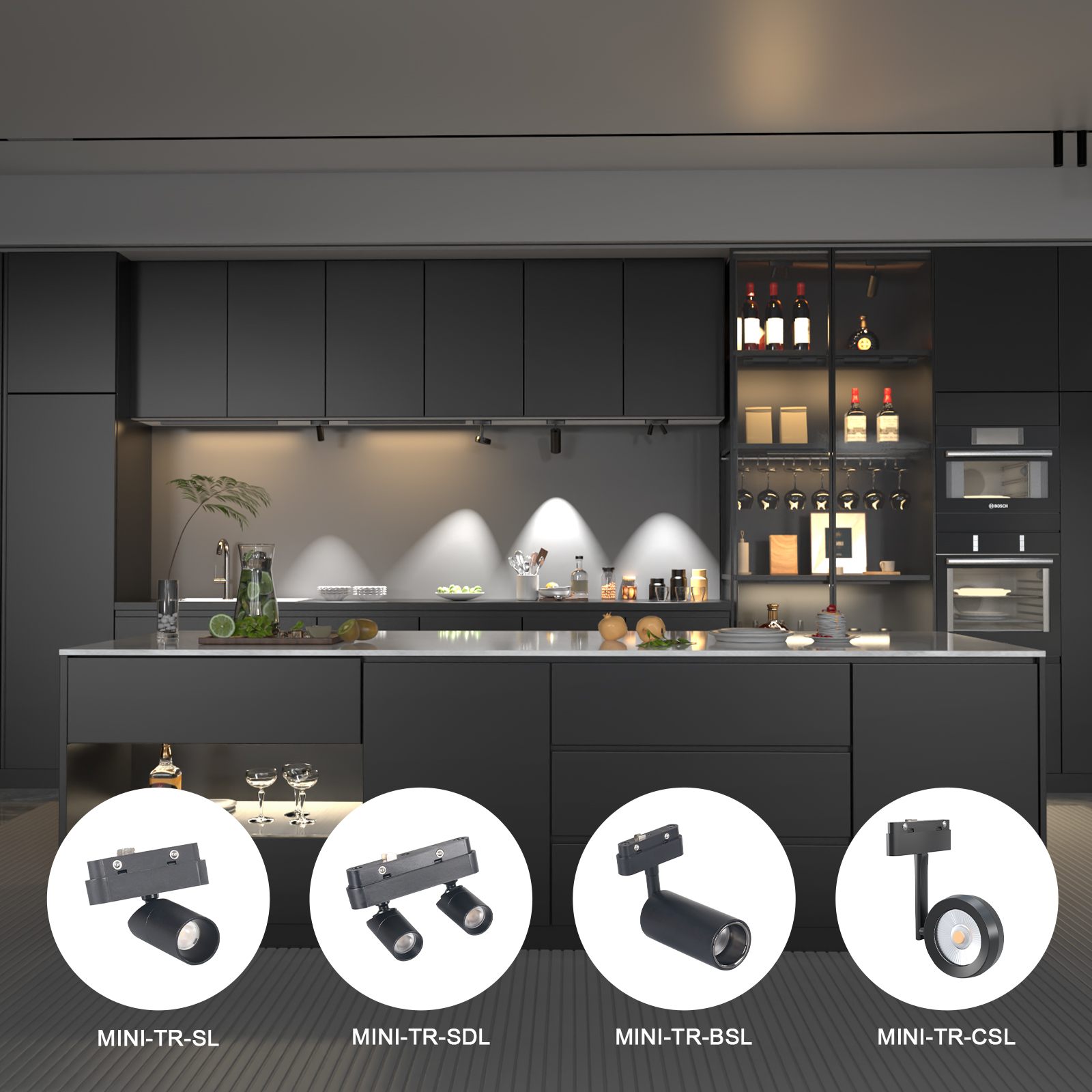

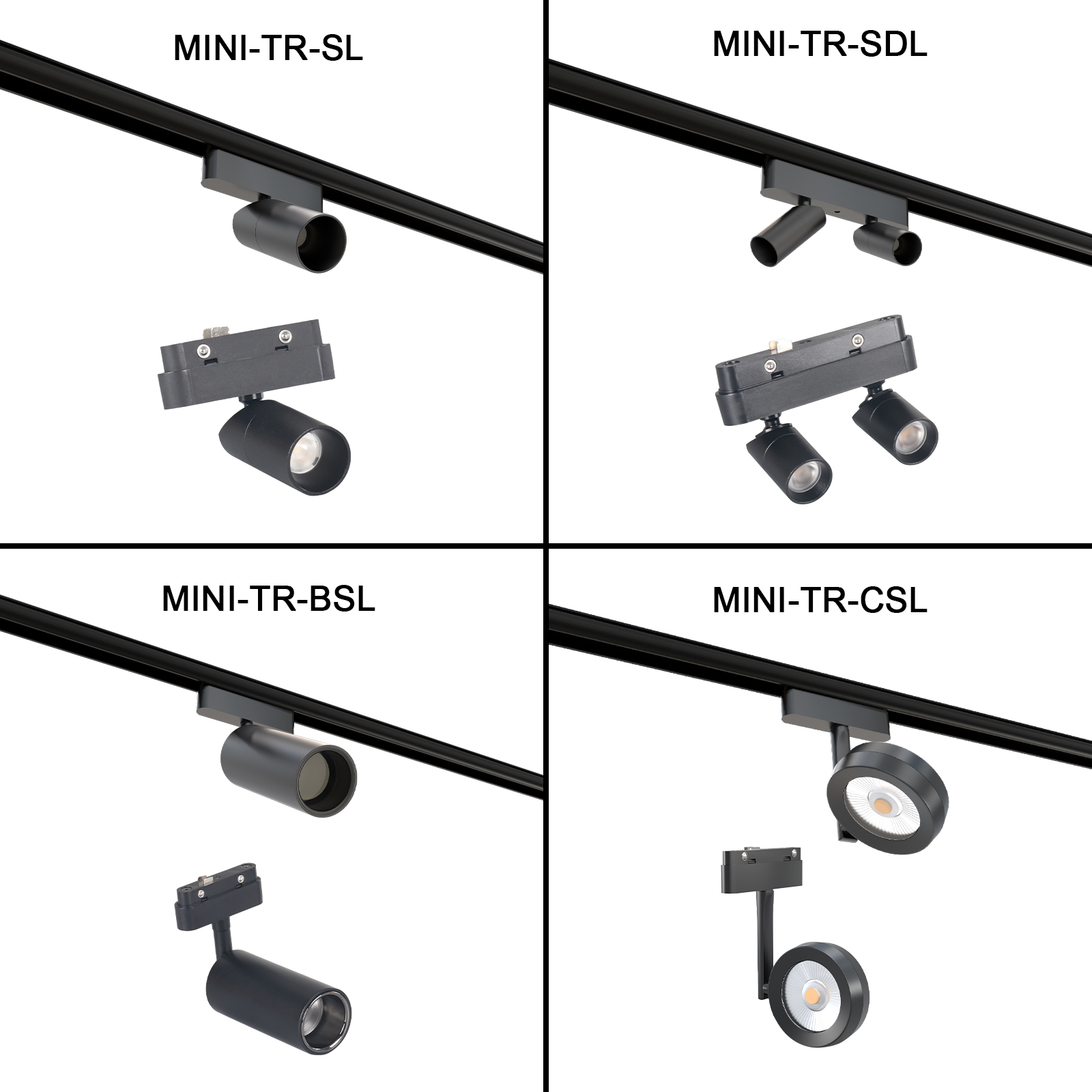

| MINI-TR-SL | Spot Light | Voltage: DC24V Power: 2W Size: Φ18*40mm CCT: 3000K/4000K/6000K Lumen: 115LM/120LM/118LM Beam Angle: 15°/24°/36° | |
| MINI-TR-SDL | Spot Double Light | Voltage: DC24V Power: 2.5W Size: Φ15x29mm CCT: 3000K/4000K/6000K Lumen: 160LM/170LM/165LM Beam Angle: 15°/24°/36° | |
| MINI-TR-BSL | Big Spot Light | Voltage: DC24V Power: 2.5W Size: Φ30*65mm CCT: 3000K/4000K/6000K Lumen: 180LM/190LM/185LM Beam Angle: 15°/24°/36° | |
| MINI-TR-CSL | Circle Spot Light | Voltage: DC24V Power: 3W Size: L79*W20*H87mm CCT: 3000K/4000K/6000K Lumen: 250LM/265LM/260LM Beam Angle: 15°/24°/36 | |
