Home›Products›BS002 LED Button Switch with dimming function, DIY LED Smart Sensor Switch for LED Strip
Product details

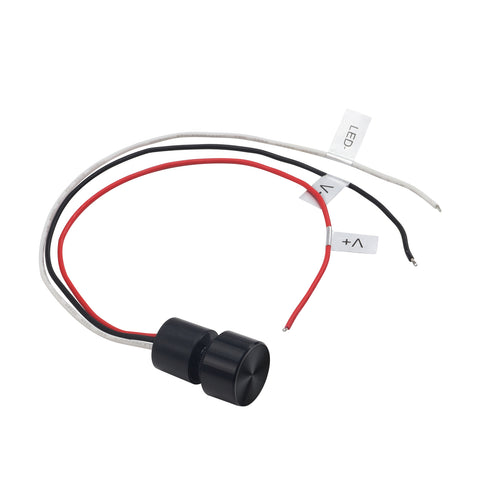

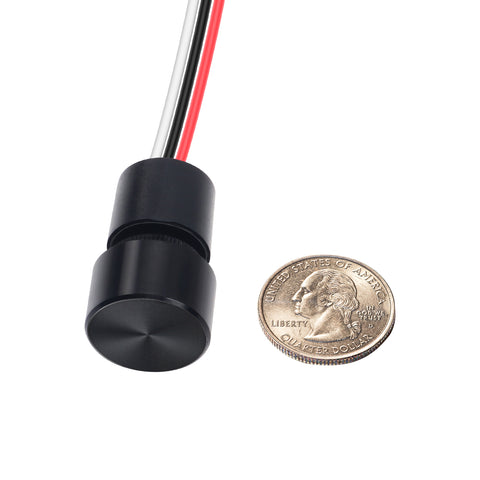

BS002 LED Button Switch with dimming function, DIY LED Smart Sensor Switch for LED Strip

12 Volt DC Dimmer Switch for LED RV Lights Interior, waterproof IP65, Suitable for Camper, Recreational Vehicle, Boat, Auto, Truck, Marine and Strip Lighting


Product Parameters:
Model
BS002
Input/ Output voltage
12-24V DC
Operation
ON / OFF + dimming function
Input Current
4A
Load Around
48W for 12V, and 96W for 24V
Input and output cable length
30cm (length can be ordered)
Product Features:
【Flexible Usage】12v led dimmer: Input voltage: DC12-24V; Max current: ≤ 4A; Output: 1 channel; Output power: 12V<48W, 24V<96W. Let you create a low-light ambiance. Easy to install, wiring is straightforward.

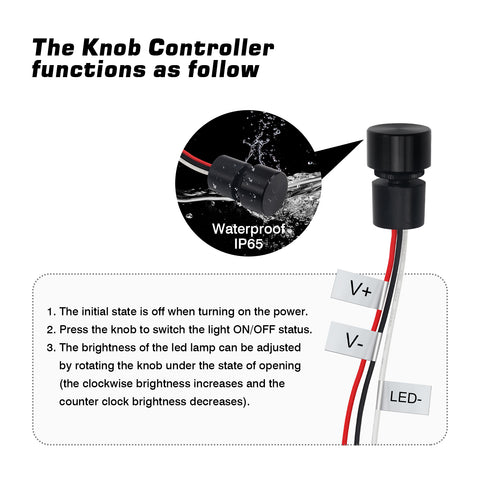

【Full Range Dimming Capability】12 volt DC dimmer 5%-100% smoothing dimming, easily adjust the light soft and stable, no flickering. Note: Pull the knob straight off the dimmer to remove it instead of twisting.
【Long Lasting】With high-quality aluminum housing, this 12v led DC dimmer provides excellent anti-corrosion and heat-dissipation capacity and ensures a lifespan of 60000+ Hours.
【Wide Application】Suitable for LED RV Lights Interior, trailers, boats, cars, trucks, or anywhere 12 volt DC power is present, fits in small spaces where other dimmers can't.

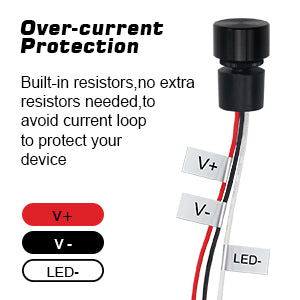

【Protect Your Lights】: Built-in resistors, no extra resistors needed, to avoid the current loop to protect your device. Has over-current protection, and eliminates problems with buzzing and overheating. CE Certification for Your Safety.

Product Features:

Product Details:

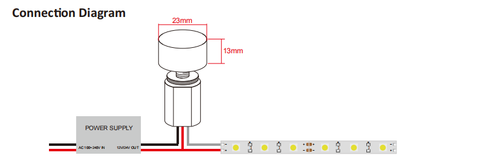

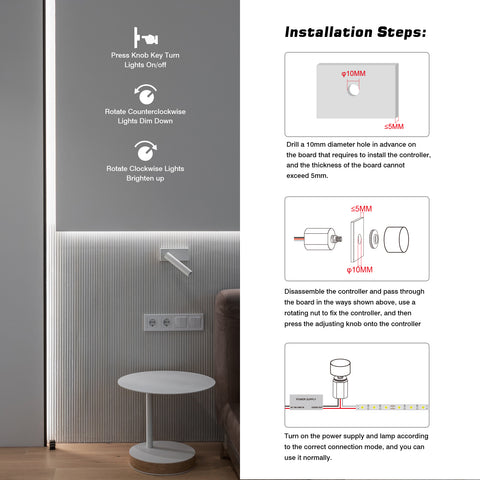

Product Installation:
Packing List:

Product Application:
Specification

Product parameters

Model
BS002
Input/ Output voltage
12-24V DC
Operation
ON / OFF + dimming function
Input Current
4A
Load Around
48W for 12V, and 96W for 24V
Input and output cable length
30cm (length can be ordered)
