Applications

Where the FCOB288-220VAC-12MM belongs

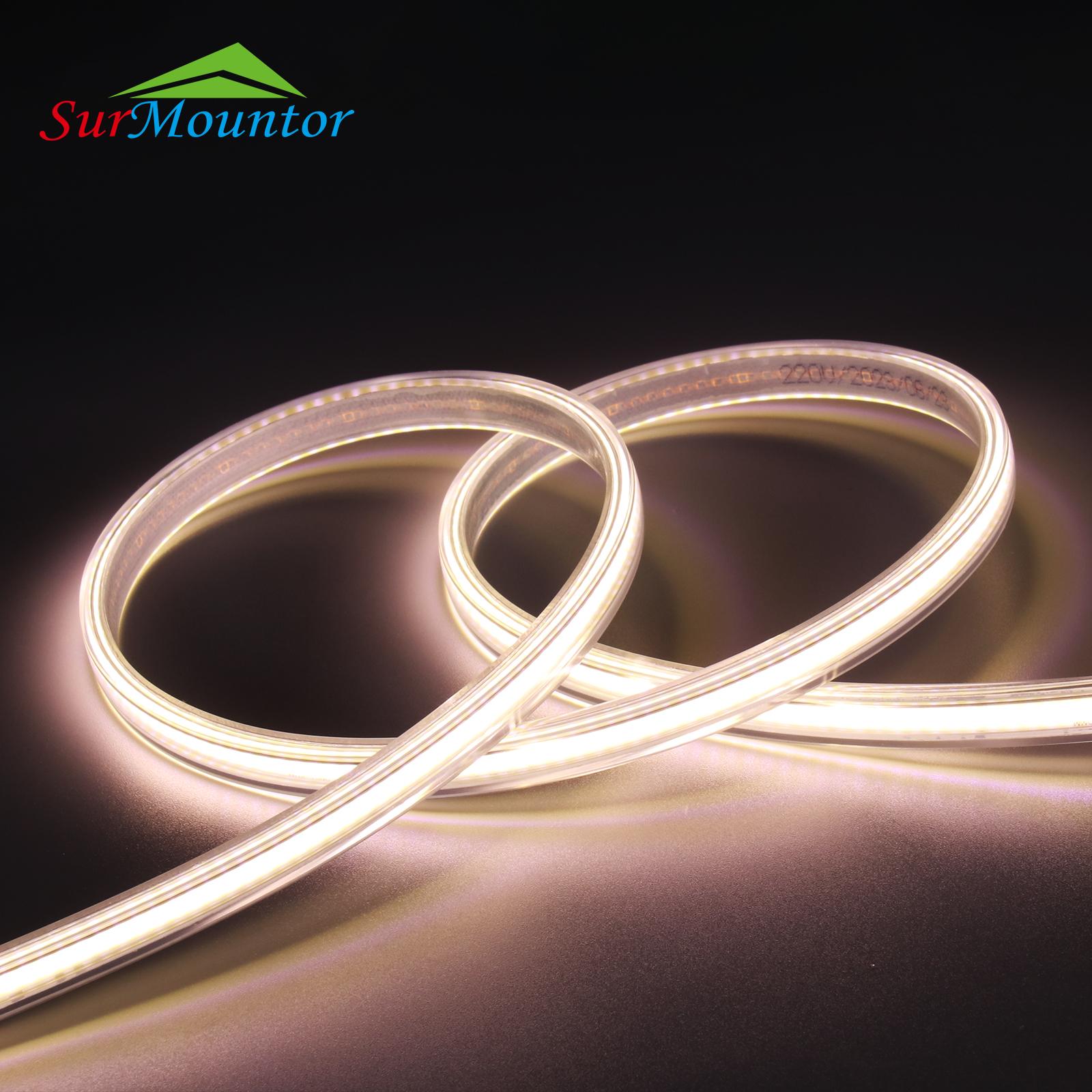

FCOB288-220VAC-12MM application

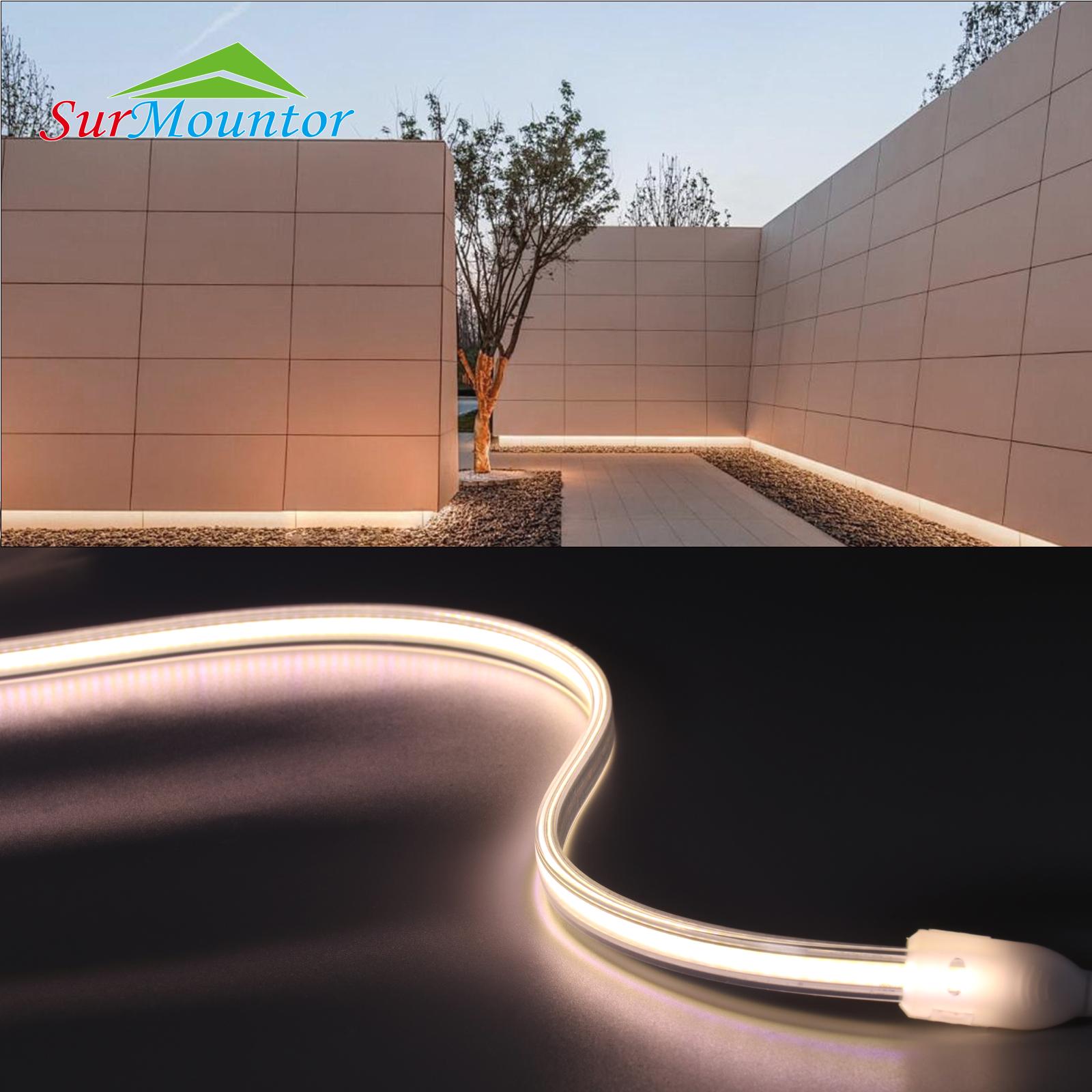

Built for outdoor precision

Continuous, seam-free illumination for building outlines, retail letters and architectural detailing. IP-rated jacket resists UV, dust and driven rain — 5-year outdoor warranty.

Even glow without dot-shadow

Diffused silicone lens softens the individual LED points into a uniform luminous line — engineered for ceiling reveals, cove details and shelf lighting where a hotspot-free finish is non-negotiable.

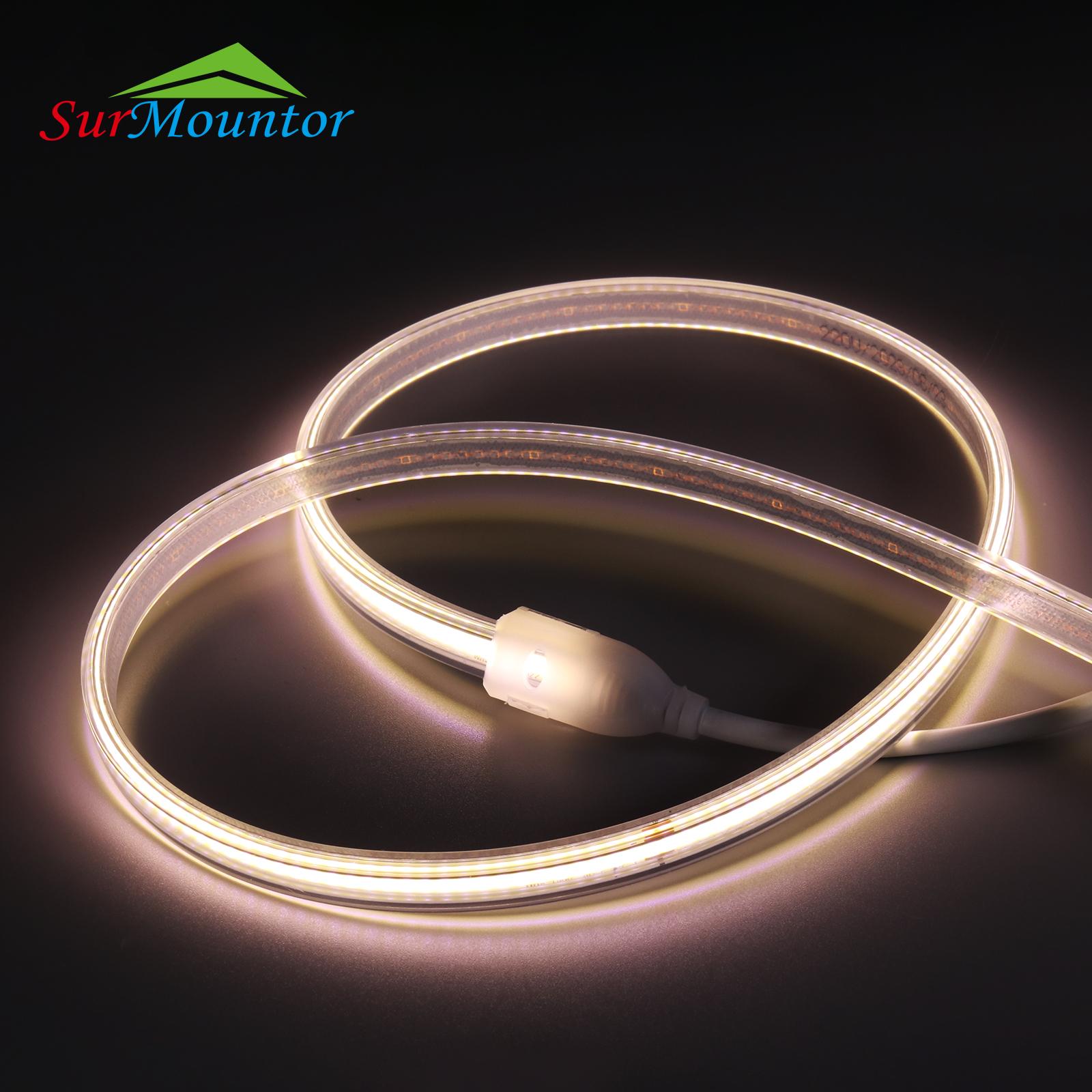

FCOB288-220VAC-12MM application
FCOB288-220VAC-12MM application

Field-friendly installation

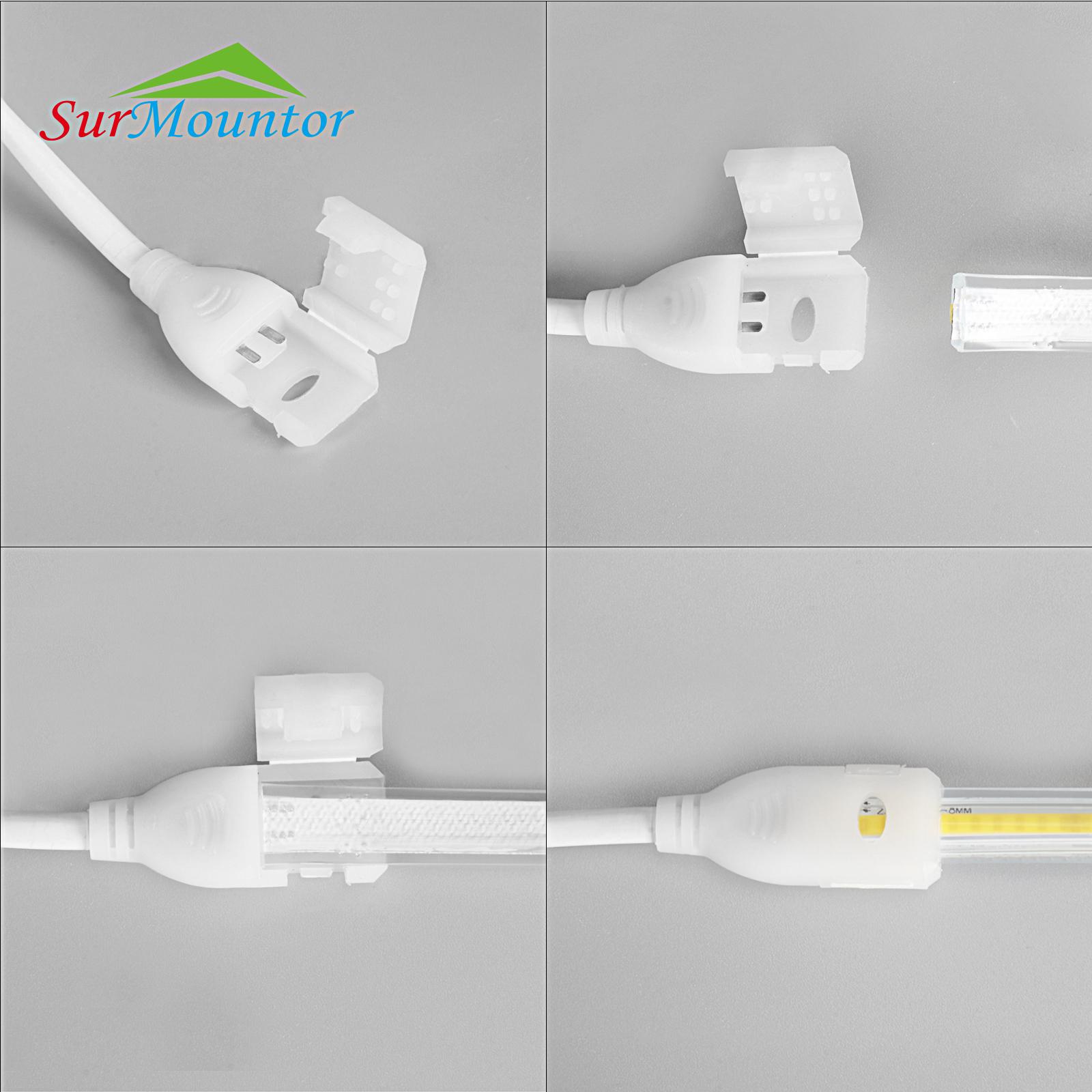

Cut interval and solder-free connector ecosystem allow site teams to trim runs and re-terminate on the spot. Reels ship in 5/10/20/30 m lengths, custom cuts available on request.

Specification

Parameter

Optical

CCT
2700 K · 3000 K · 4000 K · 6000 K
CRI (Ra)
≥ 90 (high-CRI variants)
Beam angle
180°
Luminous flux
See datasheet
MacAdam (SDCM)
≤ 3
Emitting direction
Standard top-view

Electrical

Input voltage
220 V AC
Power
See datasheet
LED type
COB
LED density
See datasheet
Cut unit
6 LEDs typical
Max run length
10 m single-end feed

Mechanical

Dimensions
See datasheet
Reel length
5 m / 10 m / 20 m / 30 m
Bending
Standard flex
Bend radius
See datasheet
Lens / Finish
See datasheet
Mounting
3M VHB adhesive · aluminum profile · clips

Environmental

IP rating
IP20 (indoor) or IP65/IP67 variants
Operating temp.
−20 °C to +50 °C
Life span
> 50,000 hours (L70)
Warranty
5 years
Certification
CE · RoHS · REACH
Sustainability
UV & chemical resistant · low-halogen
Resources

Downloads

Ready to shape your light?

Our engineers respond to spec-grade inquiries within one business day — samples ship worldwide.
