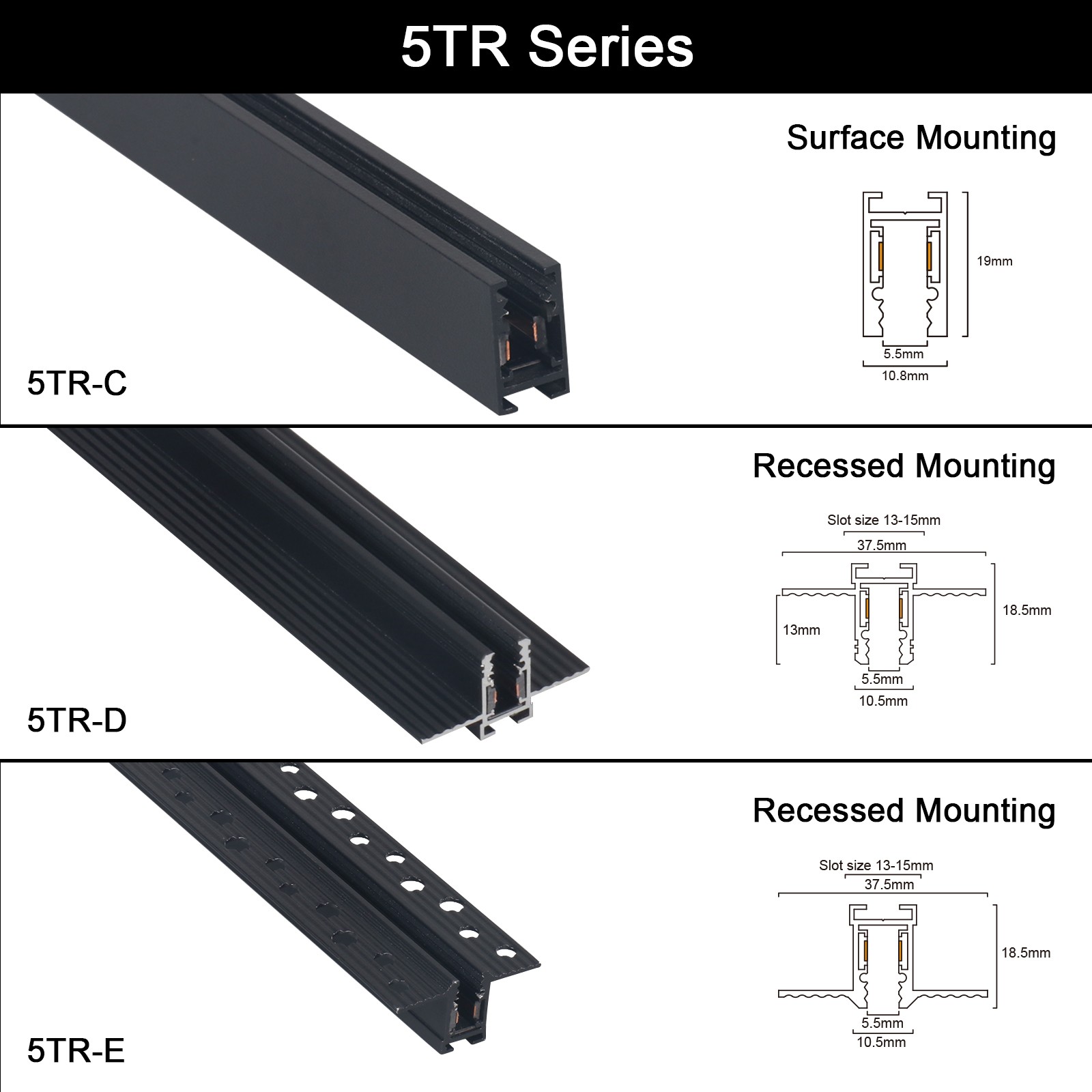

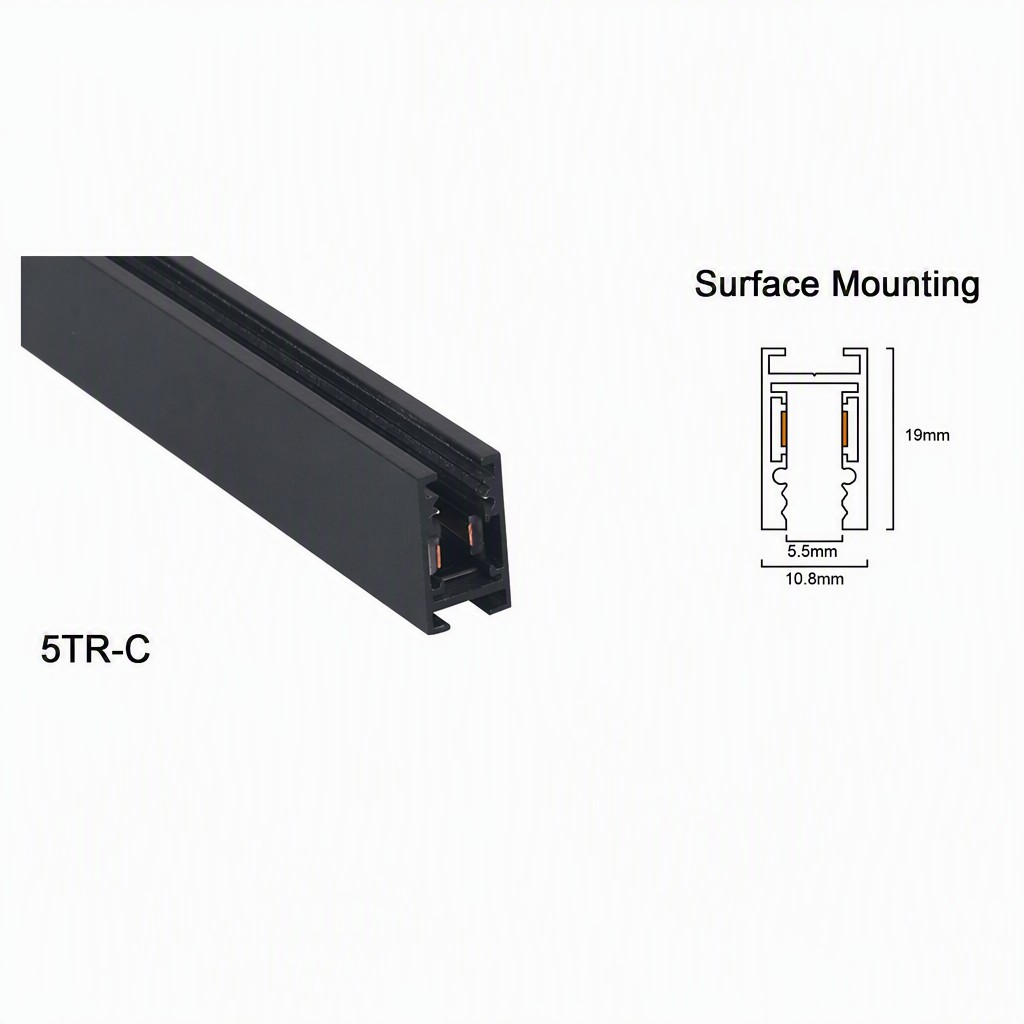

1000×10.8×19 mm aluminum track with 5.5mm magnetic slot. Available in 1M, 2M, 3M lengths. Ideal for ceiling surface mount or suspended hanging installations. Copper conductors ensure reliable magnetic contact.

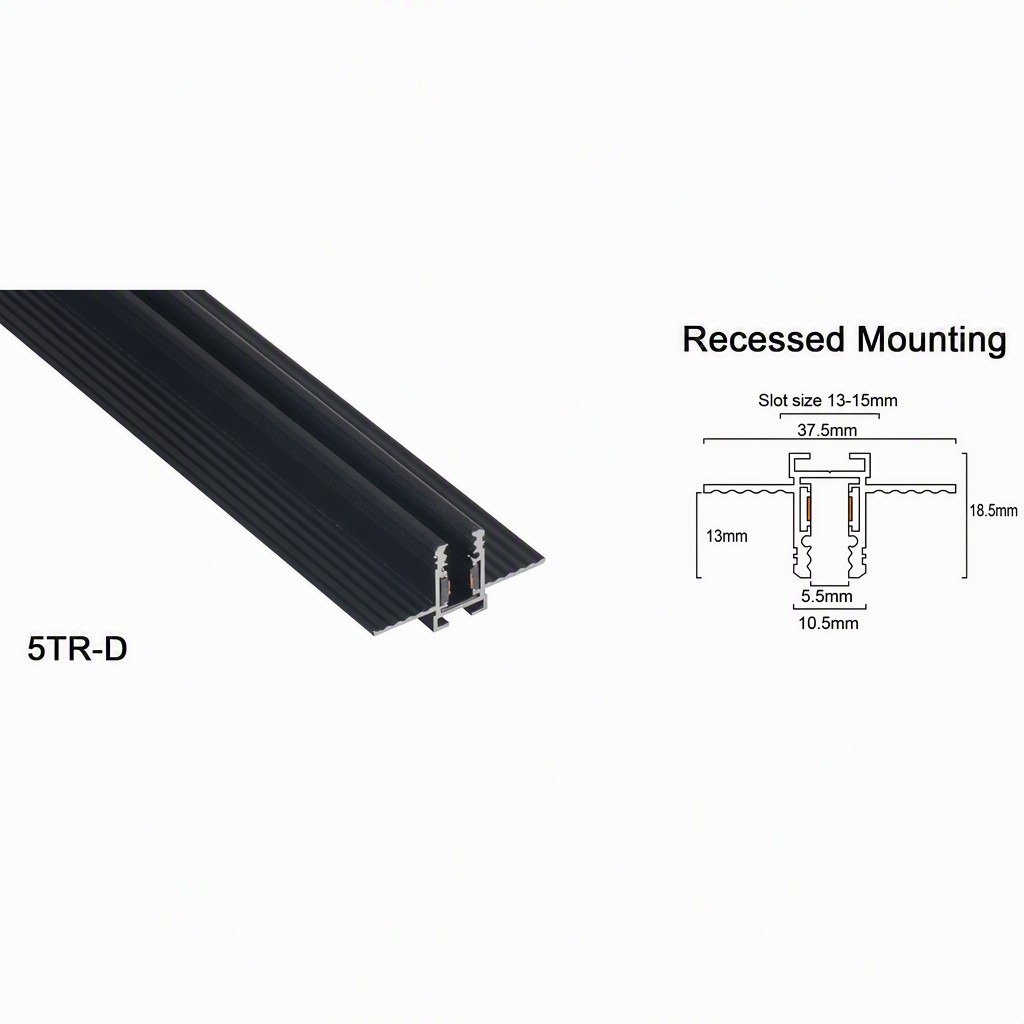

1000×38×19 mm embedded track with flanges for drywall/plaster integration. 13-15mm slot opening, total flange width 37.5mm. Perfect for architectural designs requiring a nearly invisible track profile.

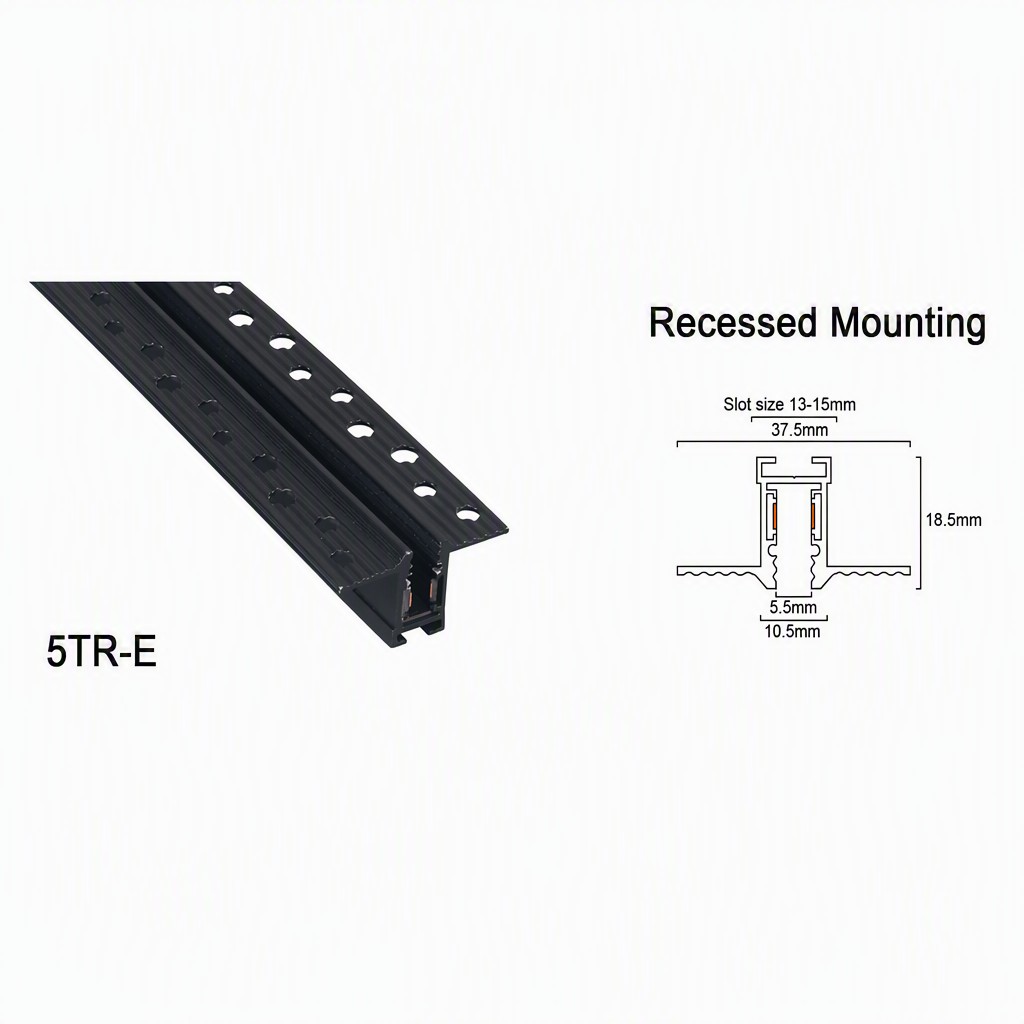

1000×38×19 mm built-in track with pre-drilled mounting holes along the flanges. Same 13-15mm slot and 37.5mm flange dimensions as 5TR-D, with added installation convenience for cabinet and ceiling integration.

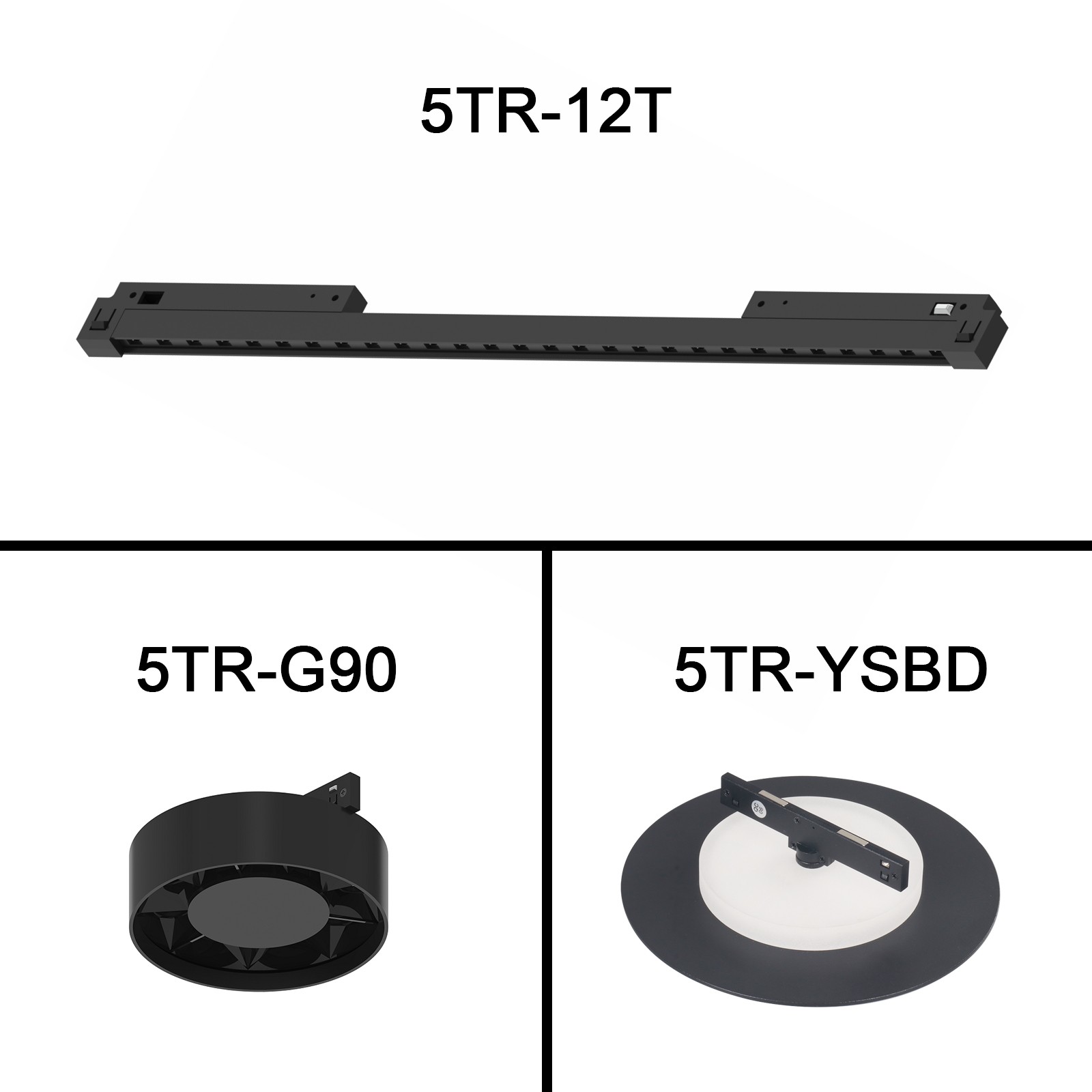

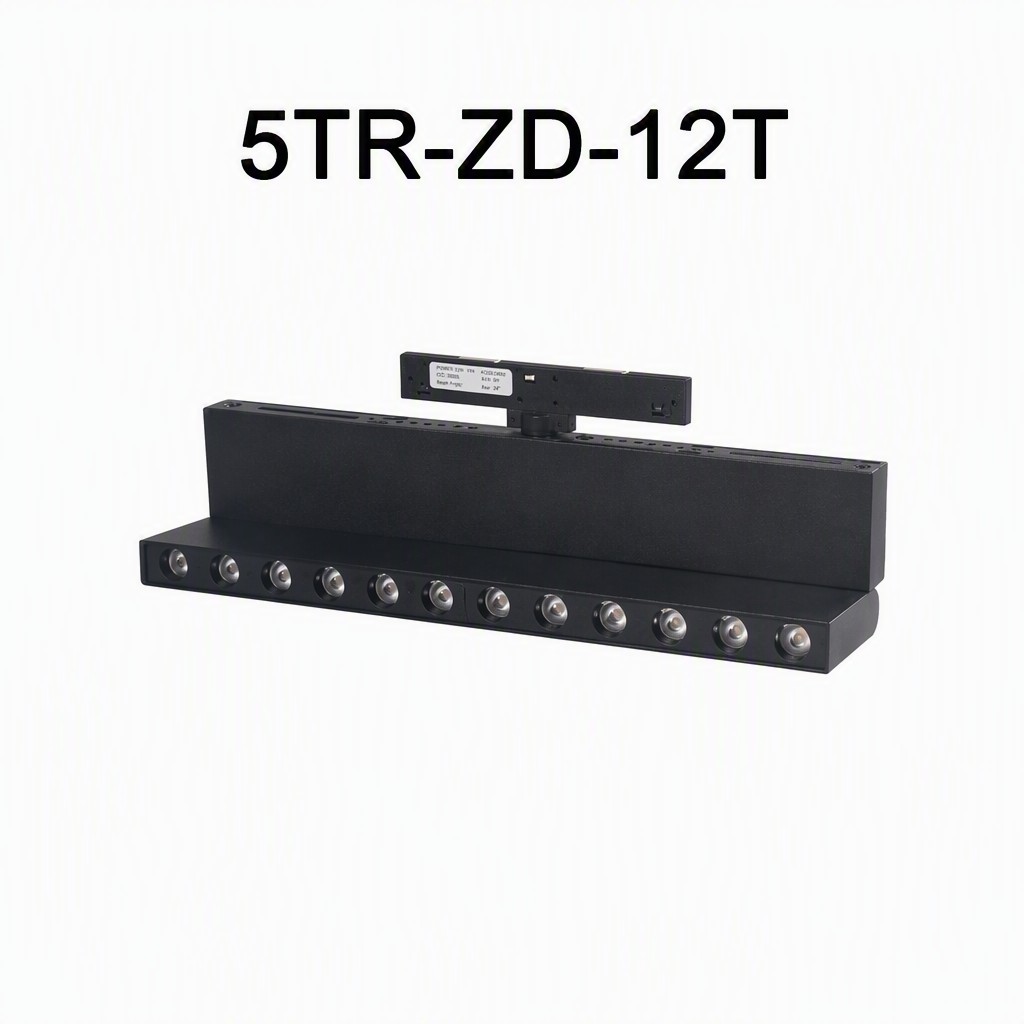

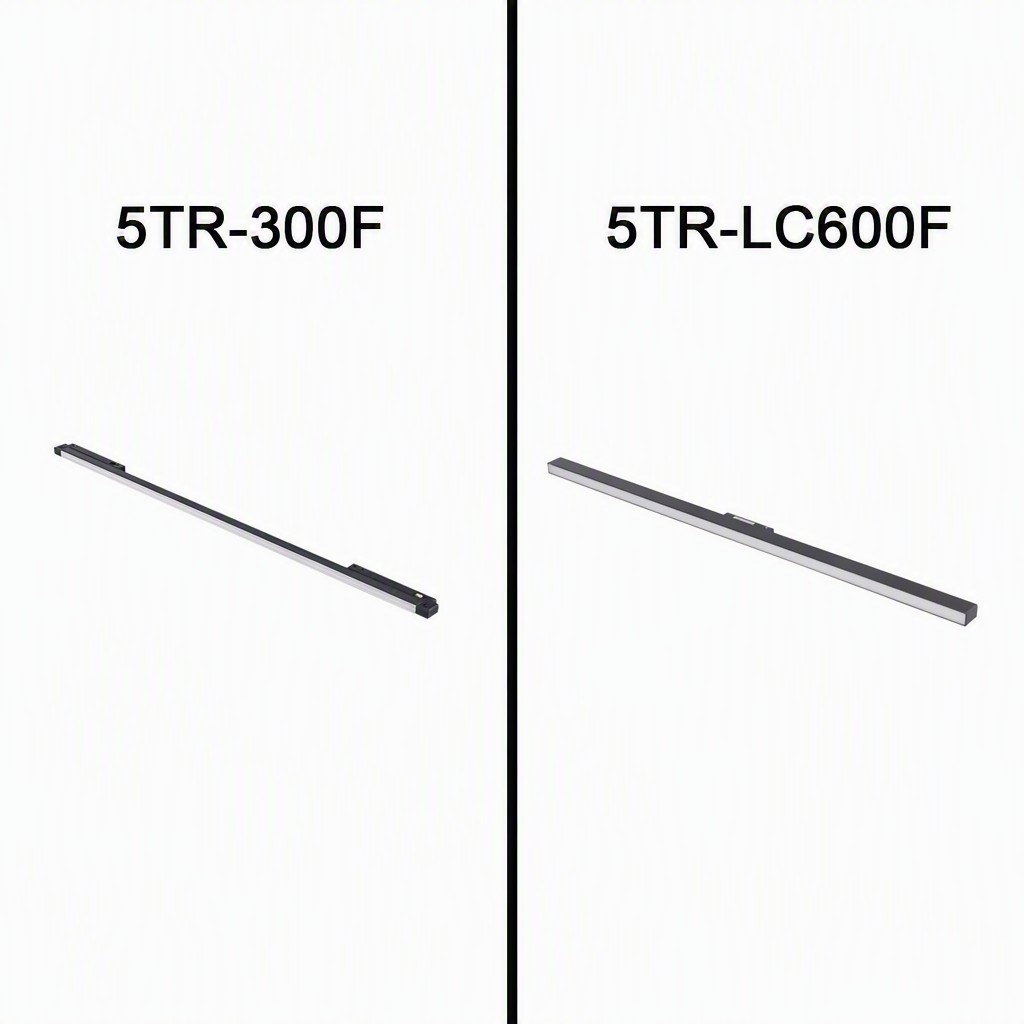

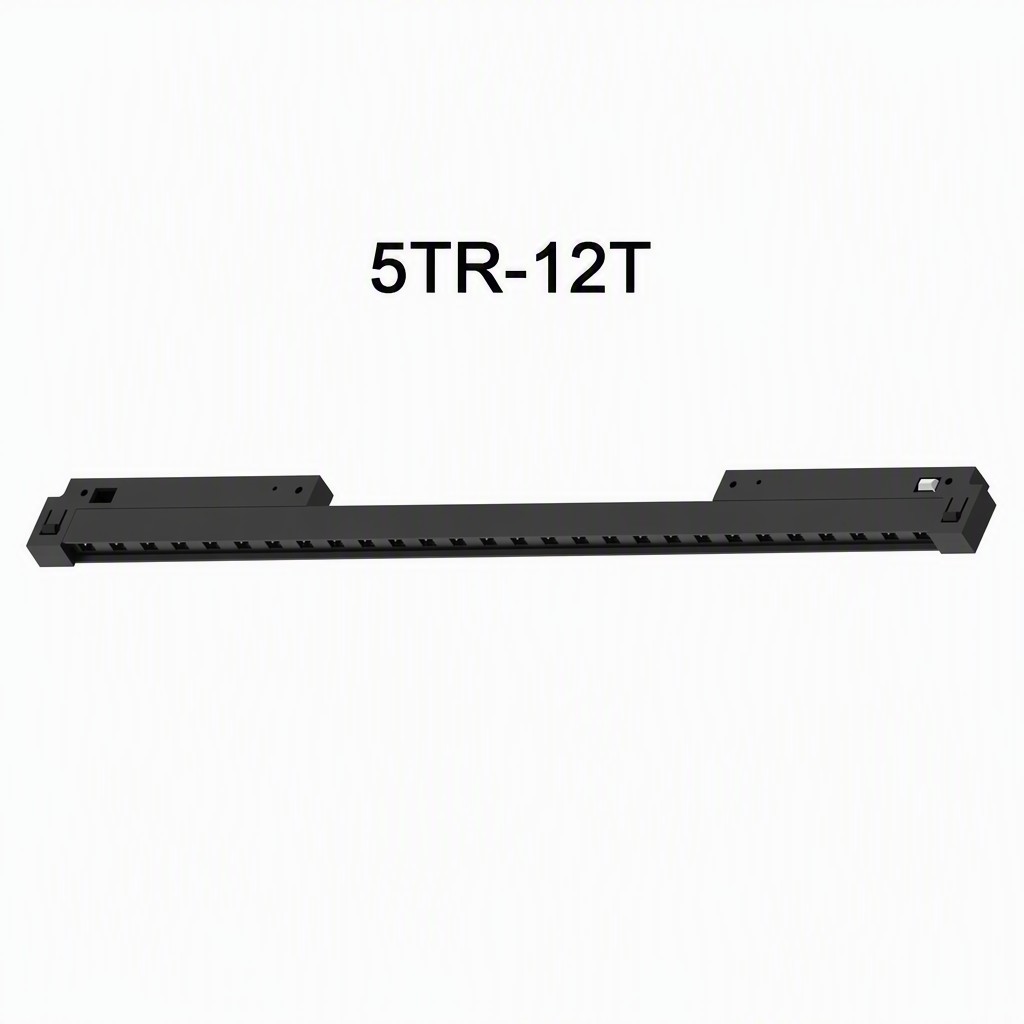

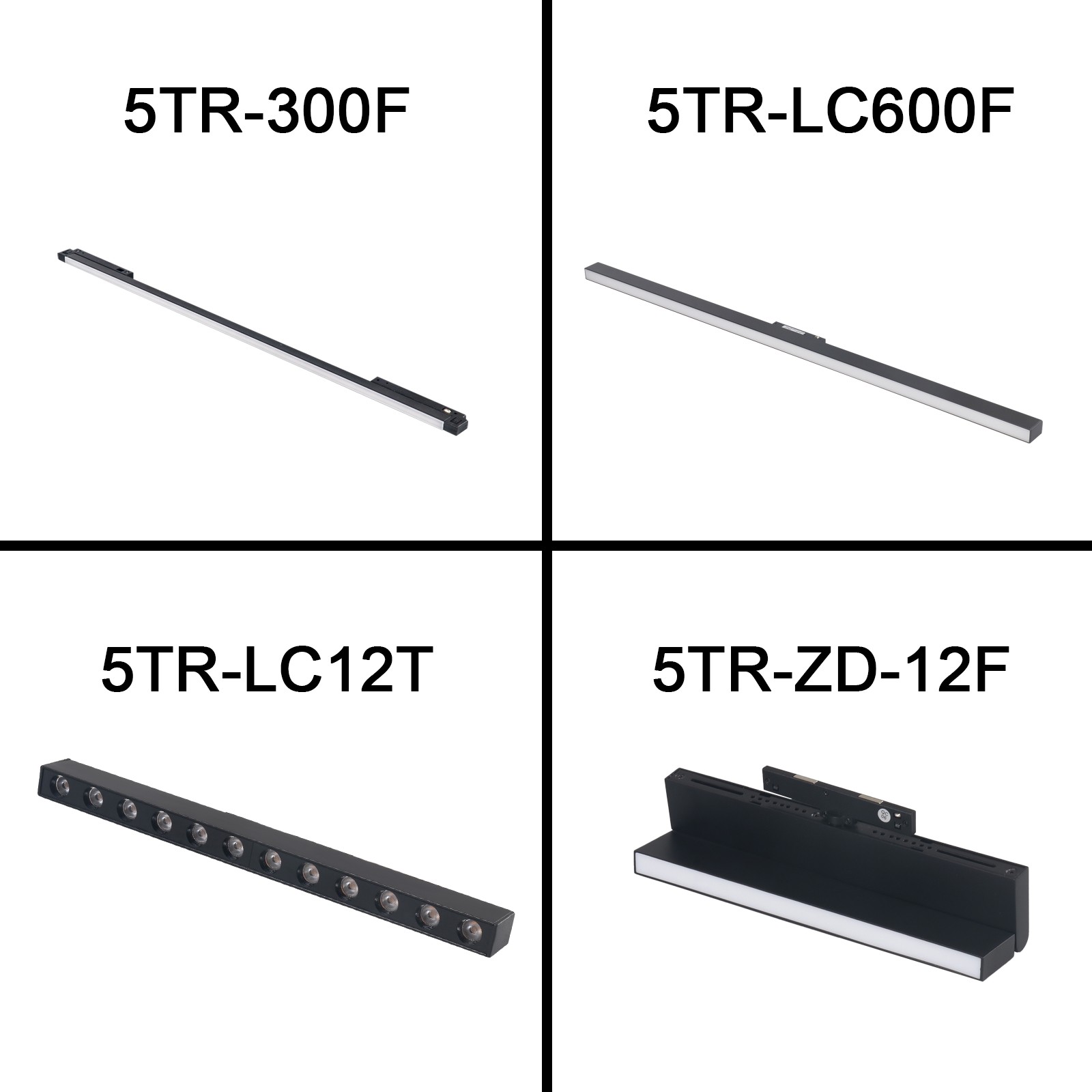

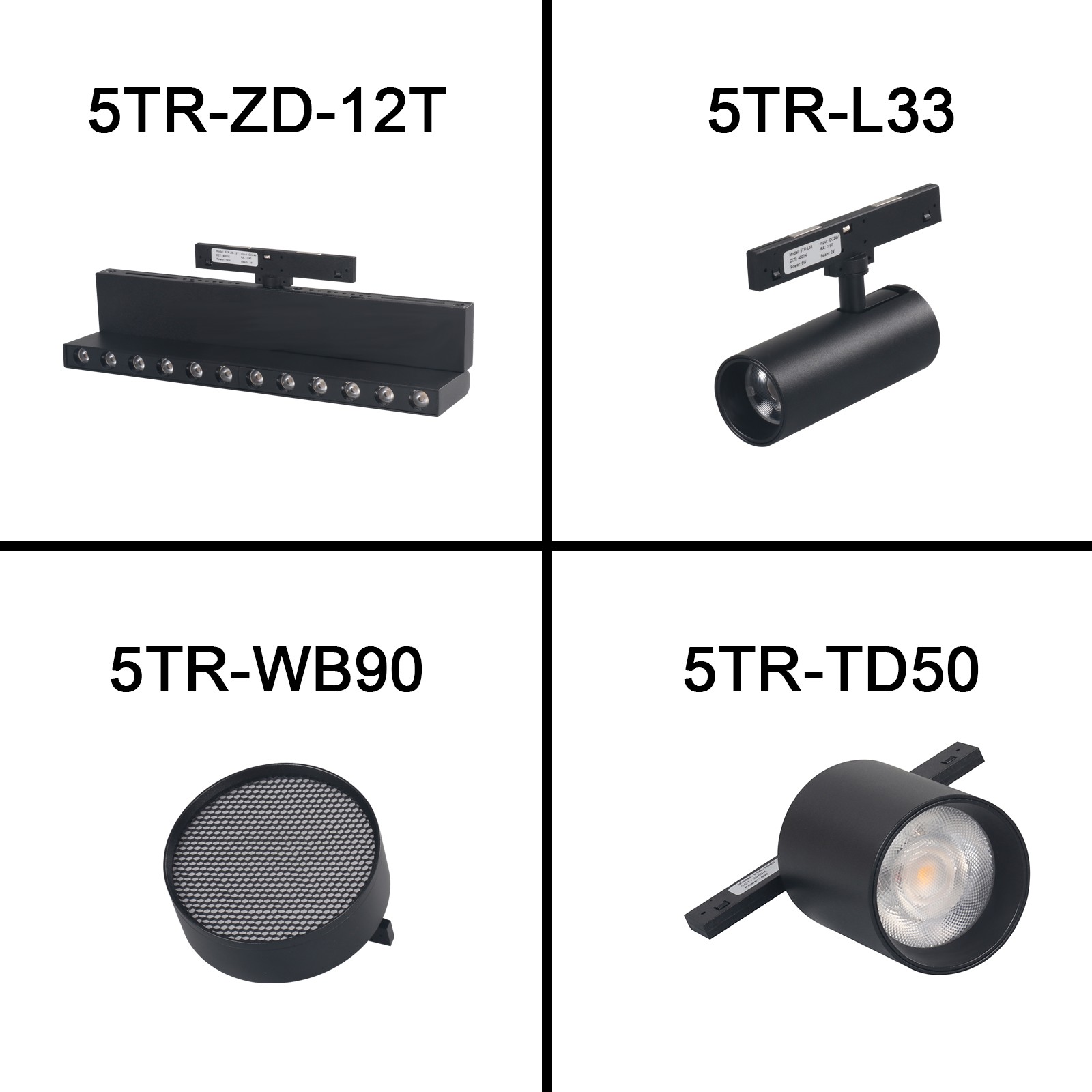

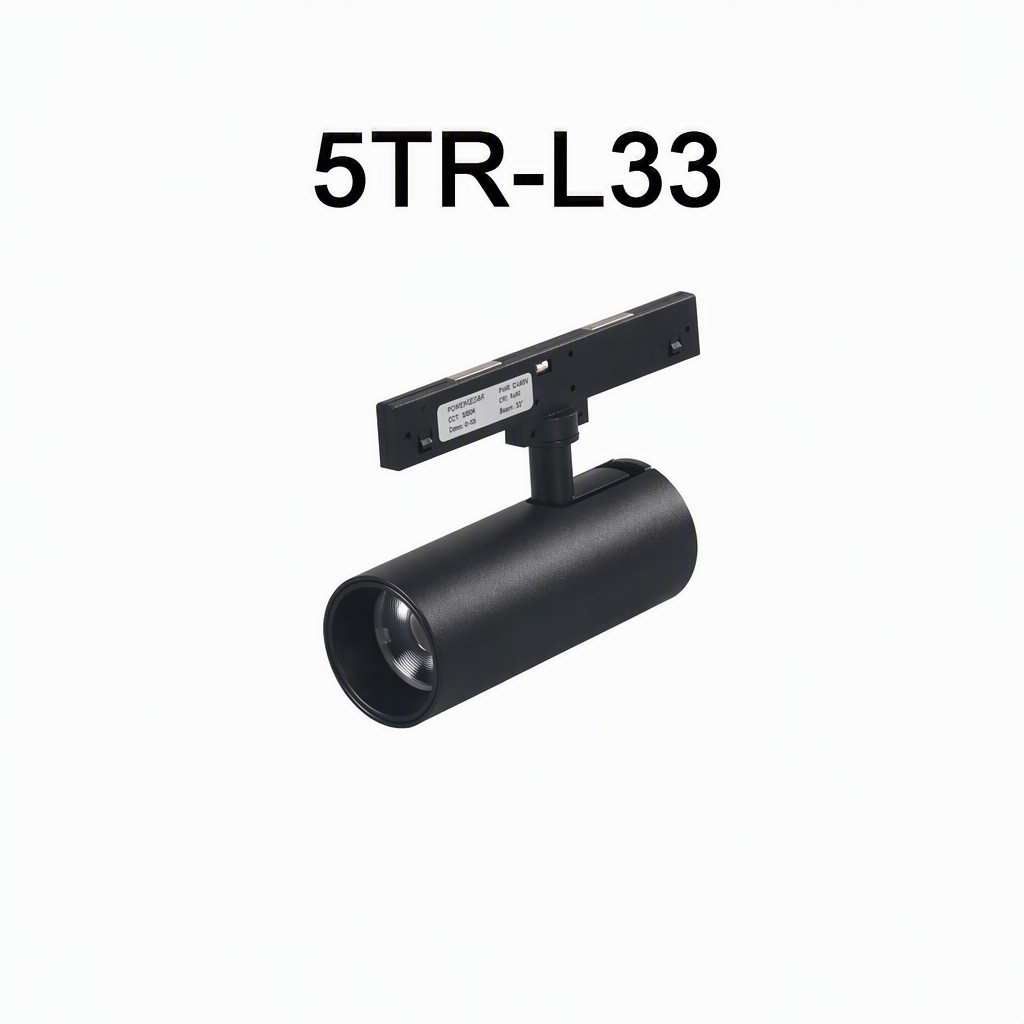

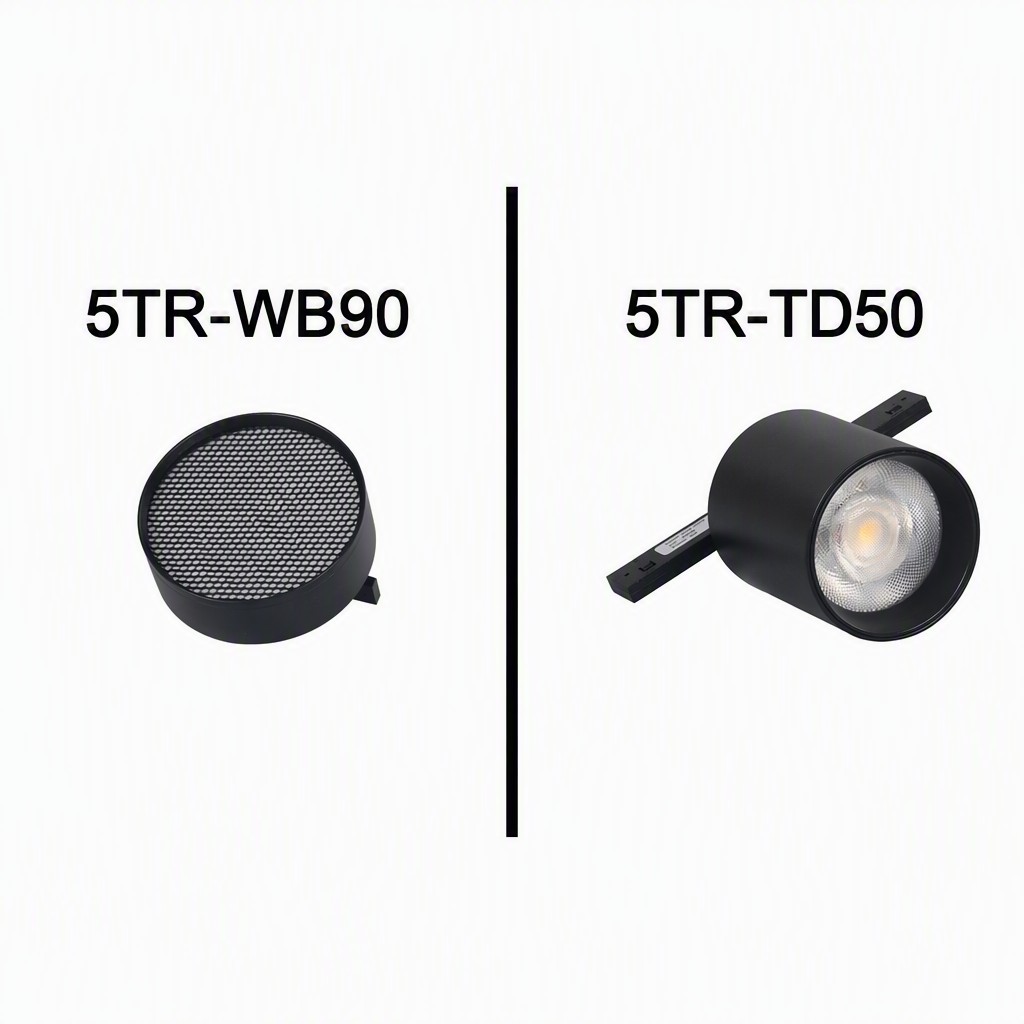

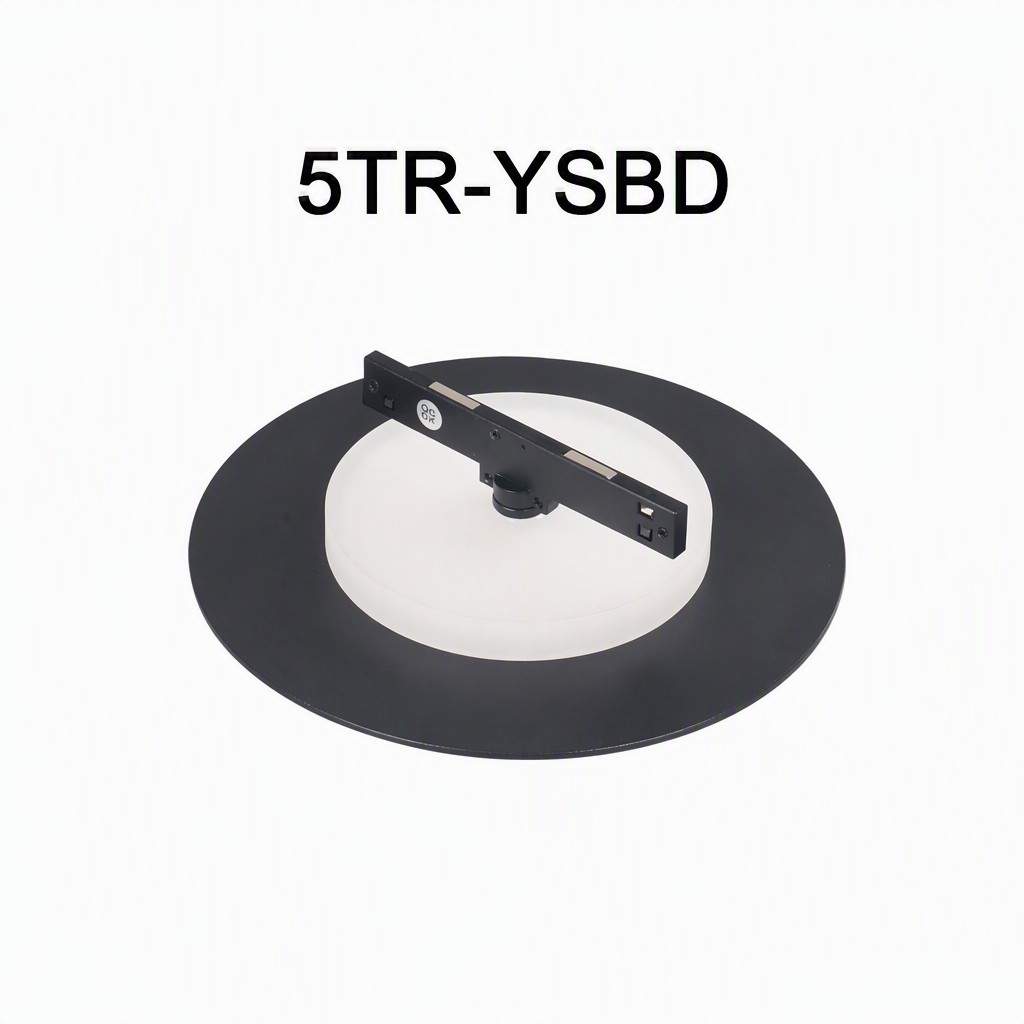

All luminaires feature magnetic attachment (tool-free swap), DC24V operation, >90 CRI, 3-year warranty, black aluminum body. CCT options: 3000K / 4000K / 5700K.
