LED Linear Light · 10mm Mini Magnetic Track Light

MINI-TR Series

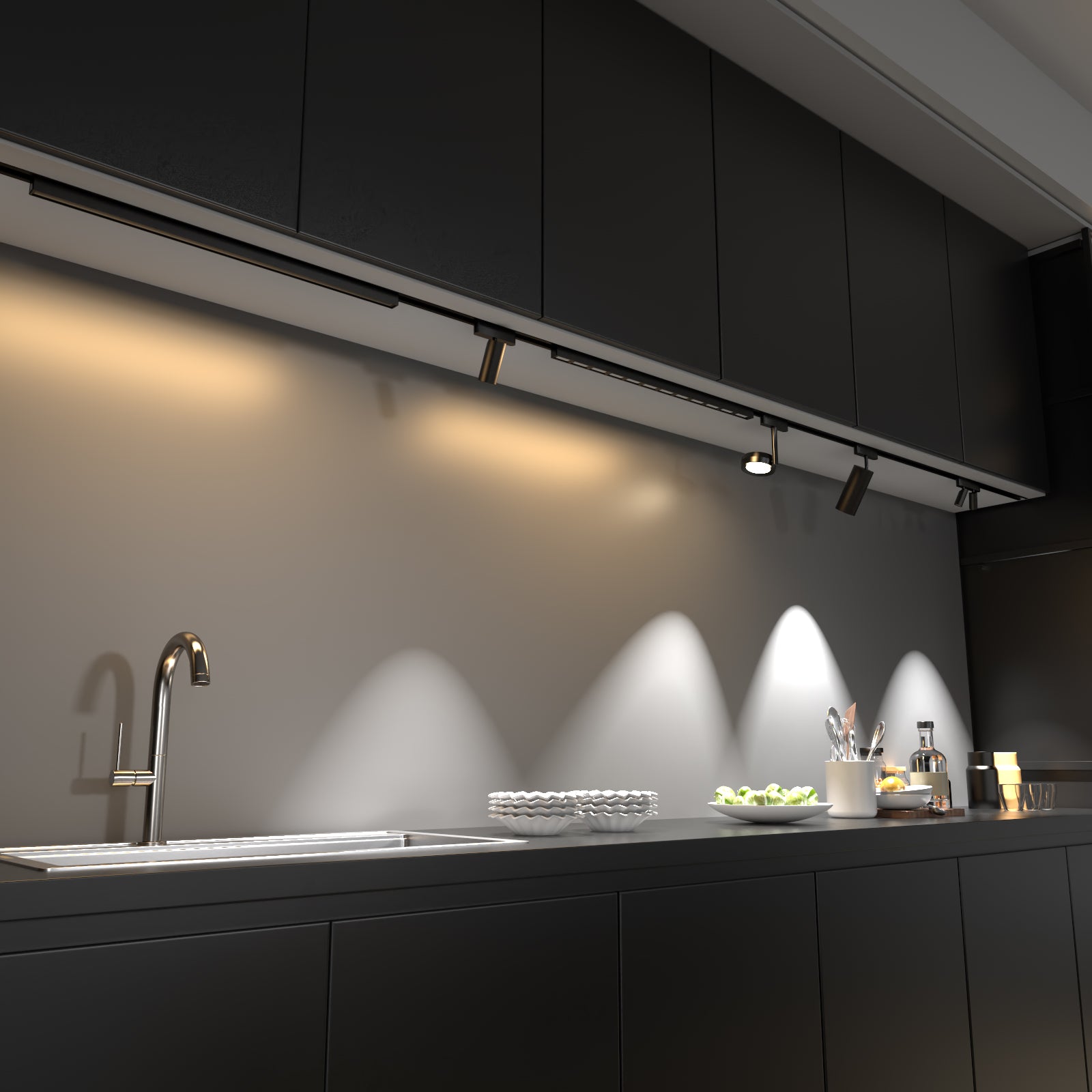

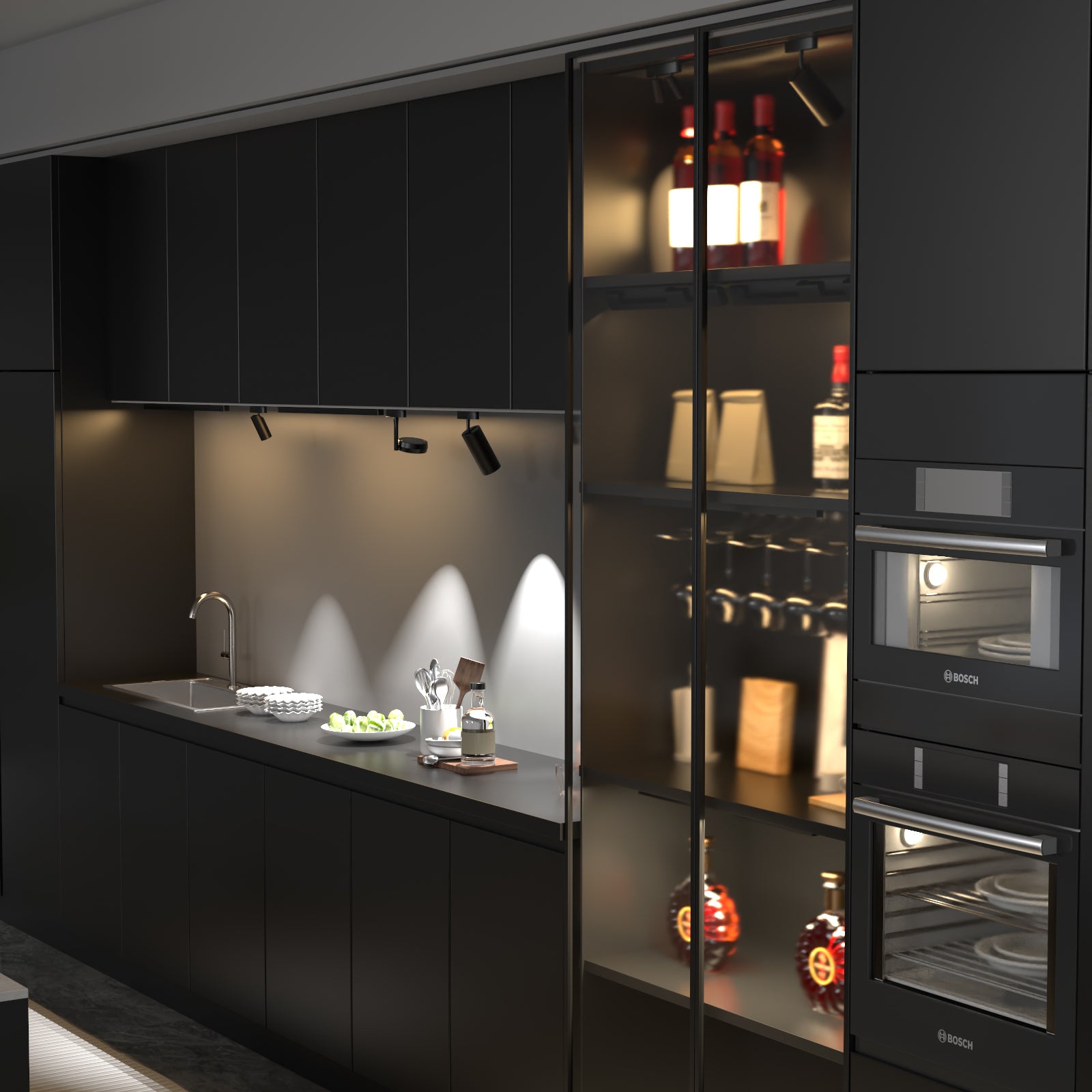

MINI-TR Series is a 10mm mini magnetic track lighting system with clip-on design for fast, tool-free installation. Pure copper busbar conductors, DC24V low-voltage operation, and a complete family of track profiles and luminaires — flood, grille, fold grille, spot, and double spot. Ideal for display cabinets, wardrobes, shelving and architectural accents.

Track width 10mm mini
Input voltage DC 24V
Conductor 2-conductor pure copper busbar
Track profiles Surface · Corner · Recessed
CCT 3000K · 4000K · 6000K
Mounting Clip-on design
Beam angle 15° · 24° · 36°
Accessories Conductive modules · Power supply

Get a quote → Download datasheet

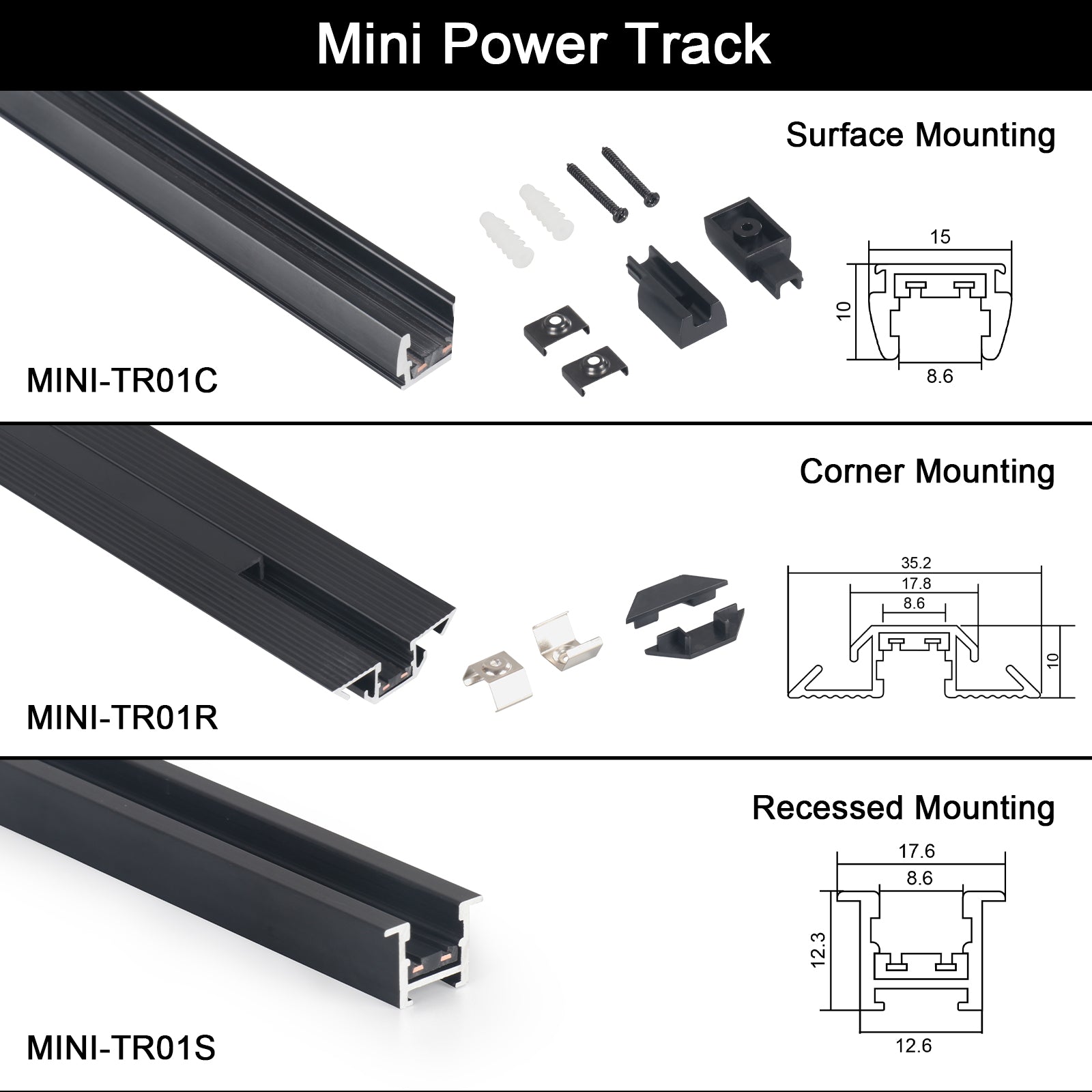

Track Profiles

Clip-on mounting for every surface

MINI-TR01S track

Surface-mounted · Clip-on Design

MINI-TR01S

Surface-mounted track with clip-on design. 2-conductor pure copper busbar. Available in 1M and 2M lengths.

Size: L1000 / L2000 × W15 × H10 mm
Surface processing: Spraying
2-Conductor pure copper busbar

Corner-mounted · Clip-on Design

MINI-TR01C

Corner-mounted track with clip-on design — perfect for display case corners and L-shaped installations.

Size: L1000 / L2000 × W35.2 × H10 mm
Surface processing: Spraying
2-Conductor pure copper busbar

MINI-TR01C track

MINI-TR01R track

Recessed Installation

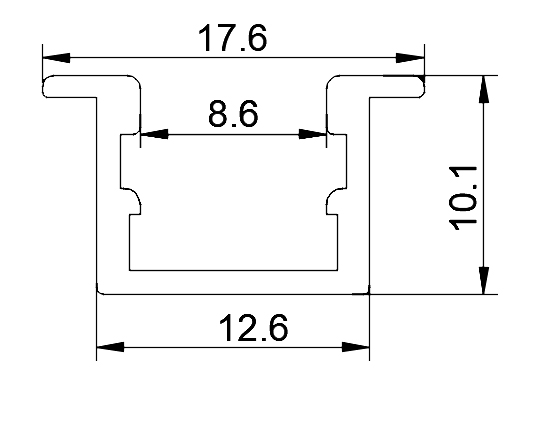

MINI-TR01R

Recessed track for flush integration into cabinetry and displays. Slim 10.1mm profile.

Size: L1000 / L2000 × W17.6 × H10.1 mm
Surface processing: Spraying
2-Conductor pure copper busbar

Mini Track Series

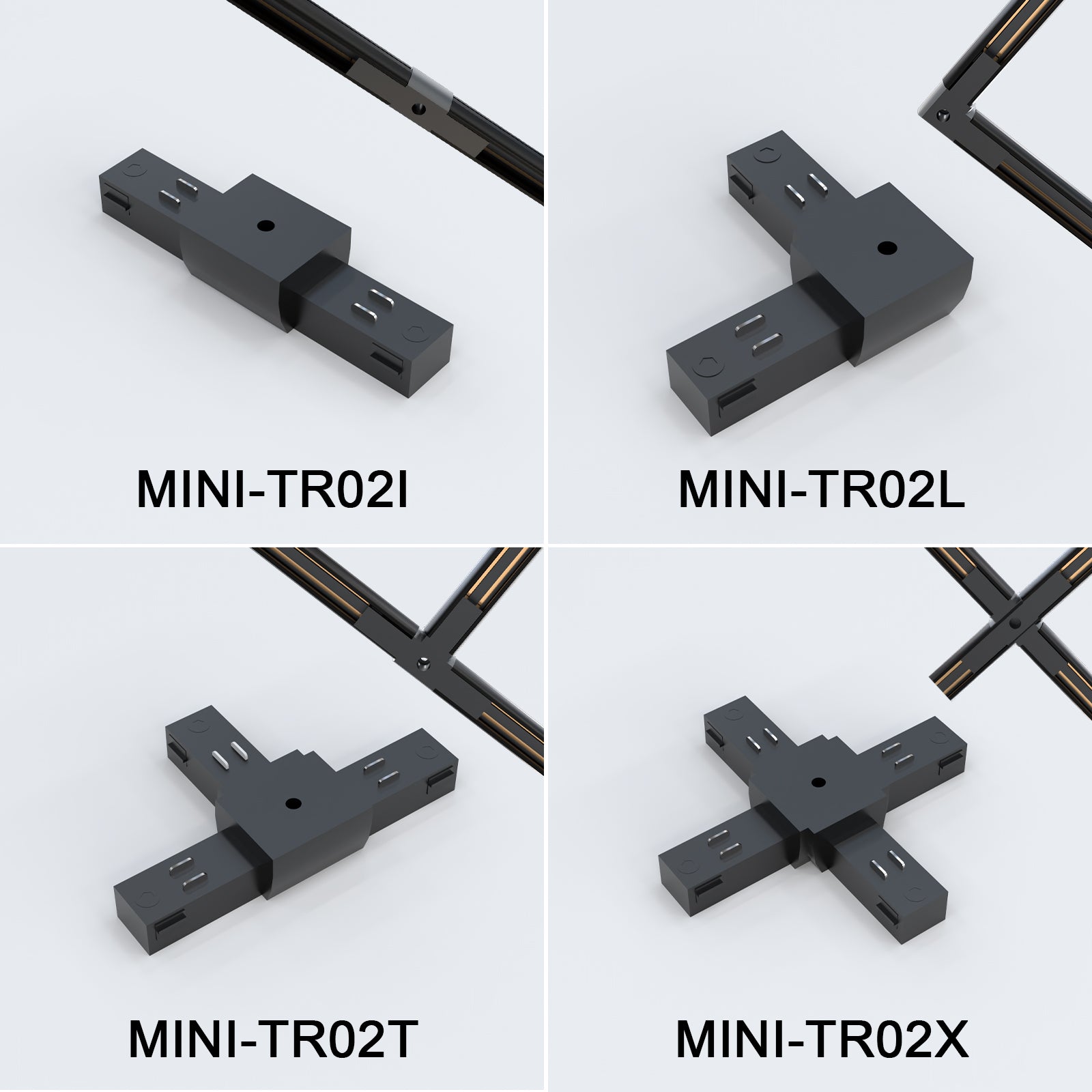

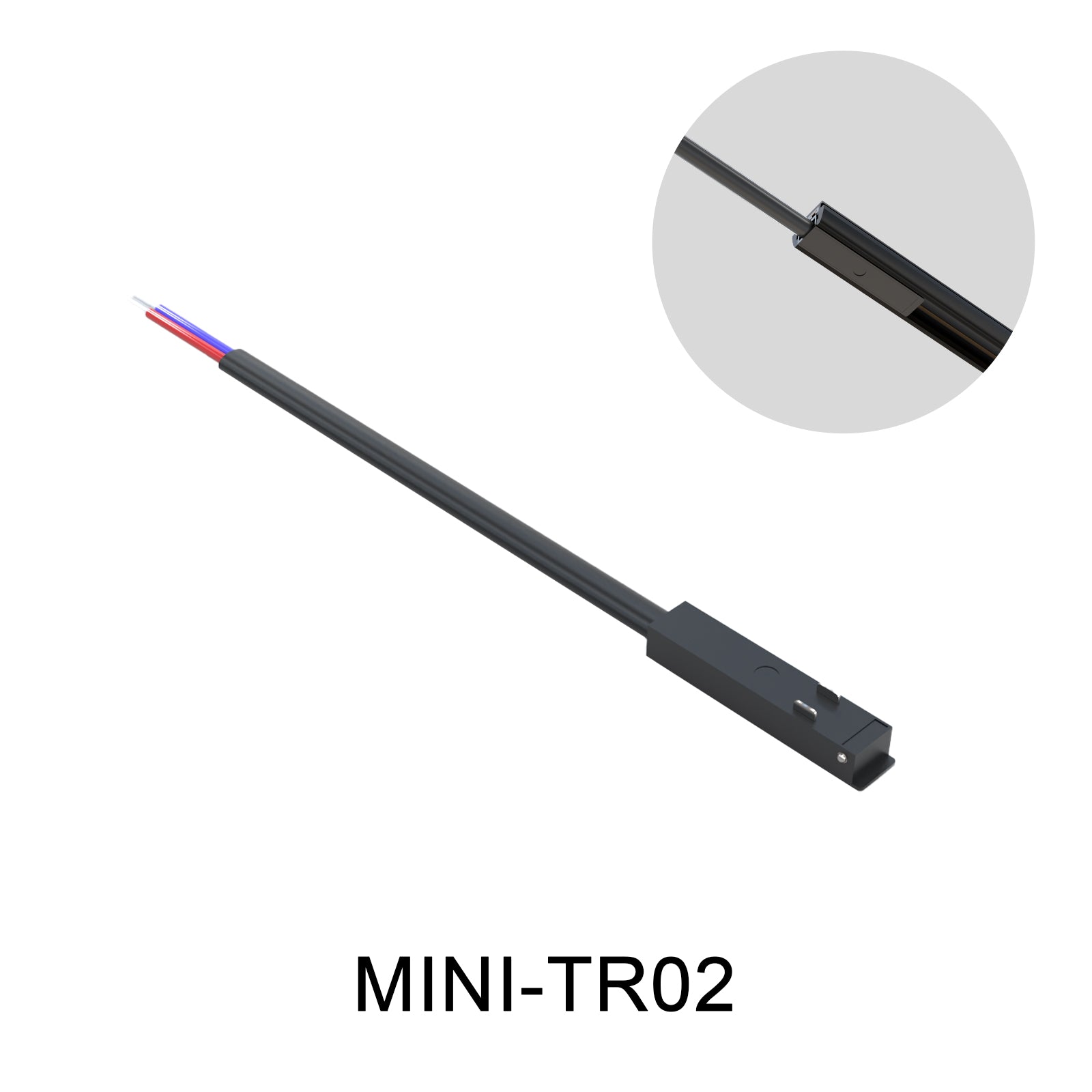

MINI-TR02 Series

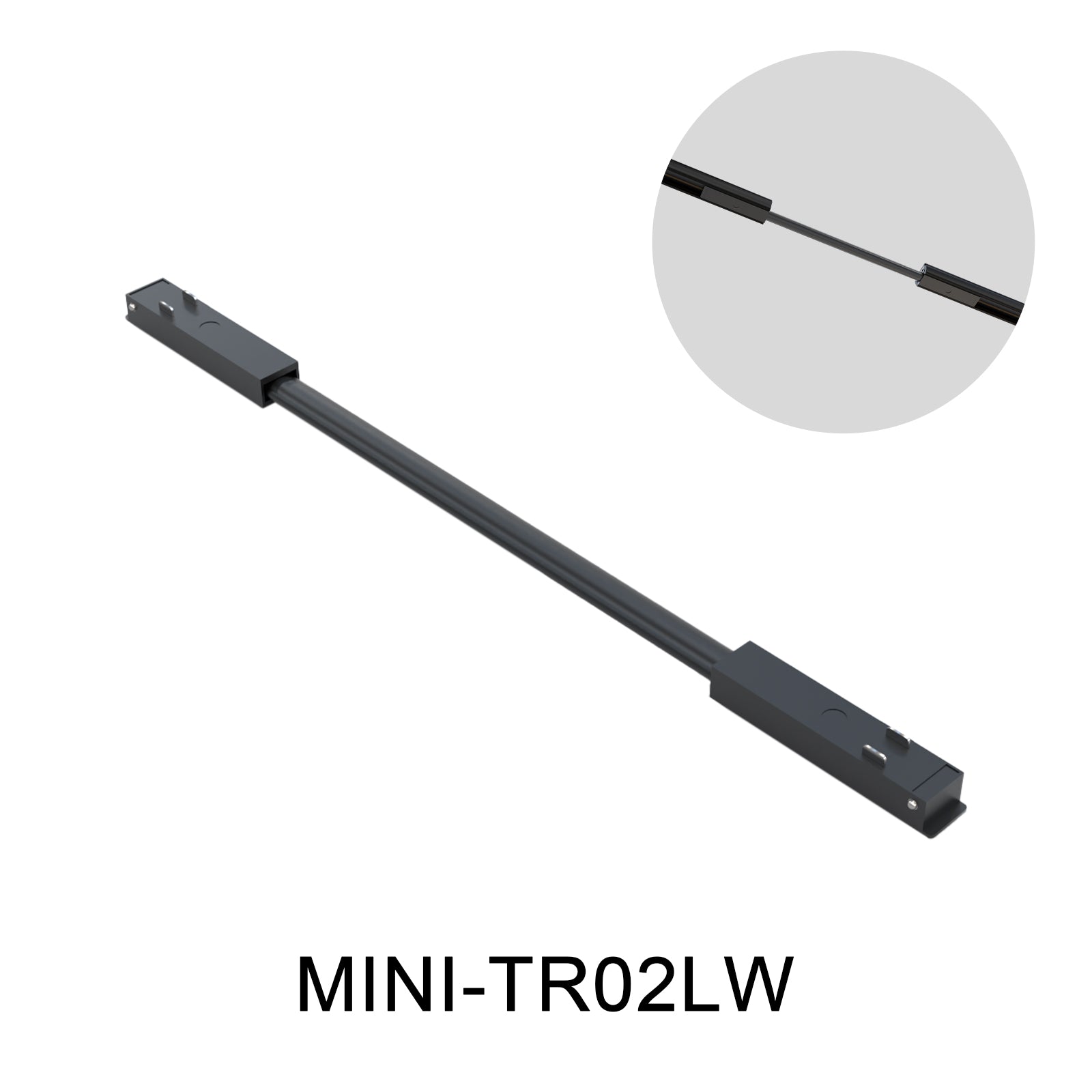

Extended mini track family — MINI-TR02, 02I, 02L, 02LW, 02T, 02X variants for different mounting and length configurations.

MINI-TR02 / 02I / 02L / 02LW / 02T / 02X
Compatible with all MINI-TR luminaires
DC24V pure copper busbar

MINI-TR02 series

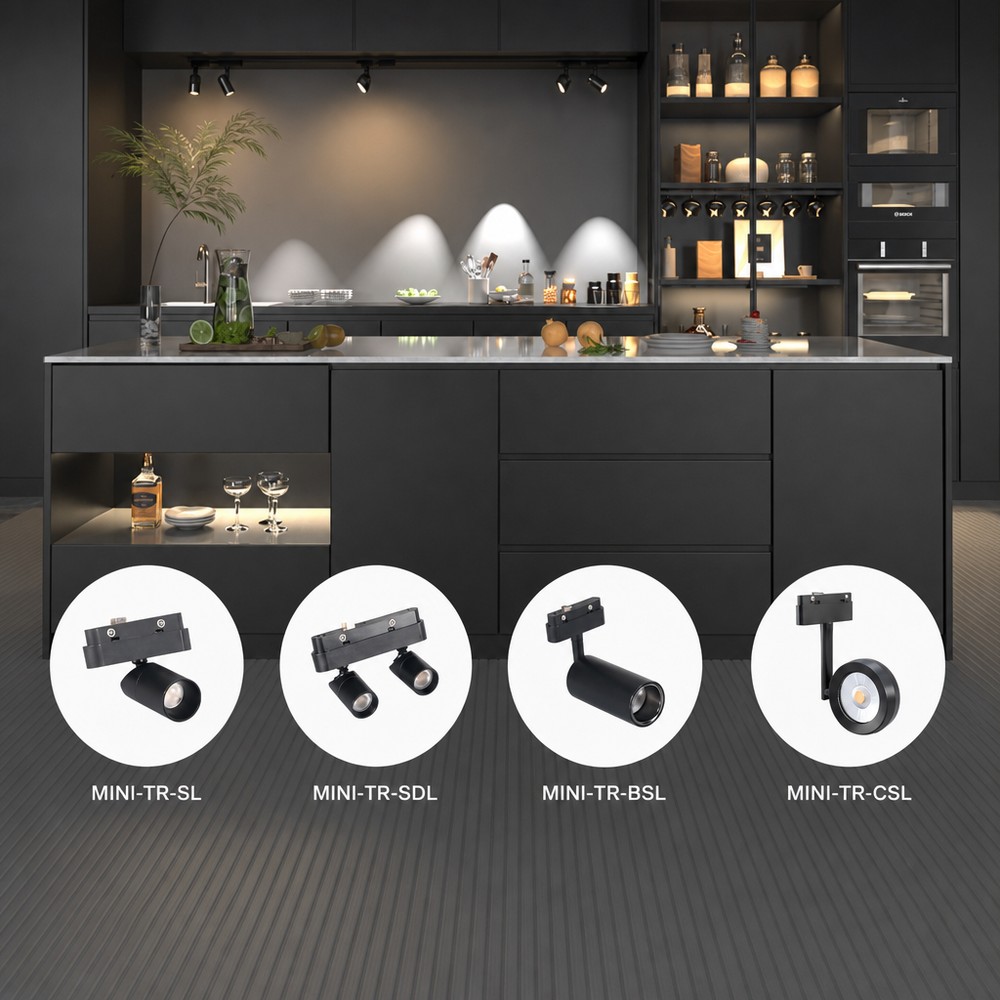

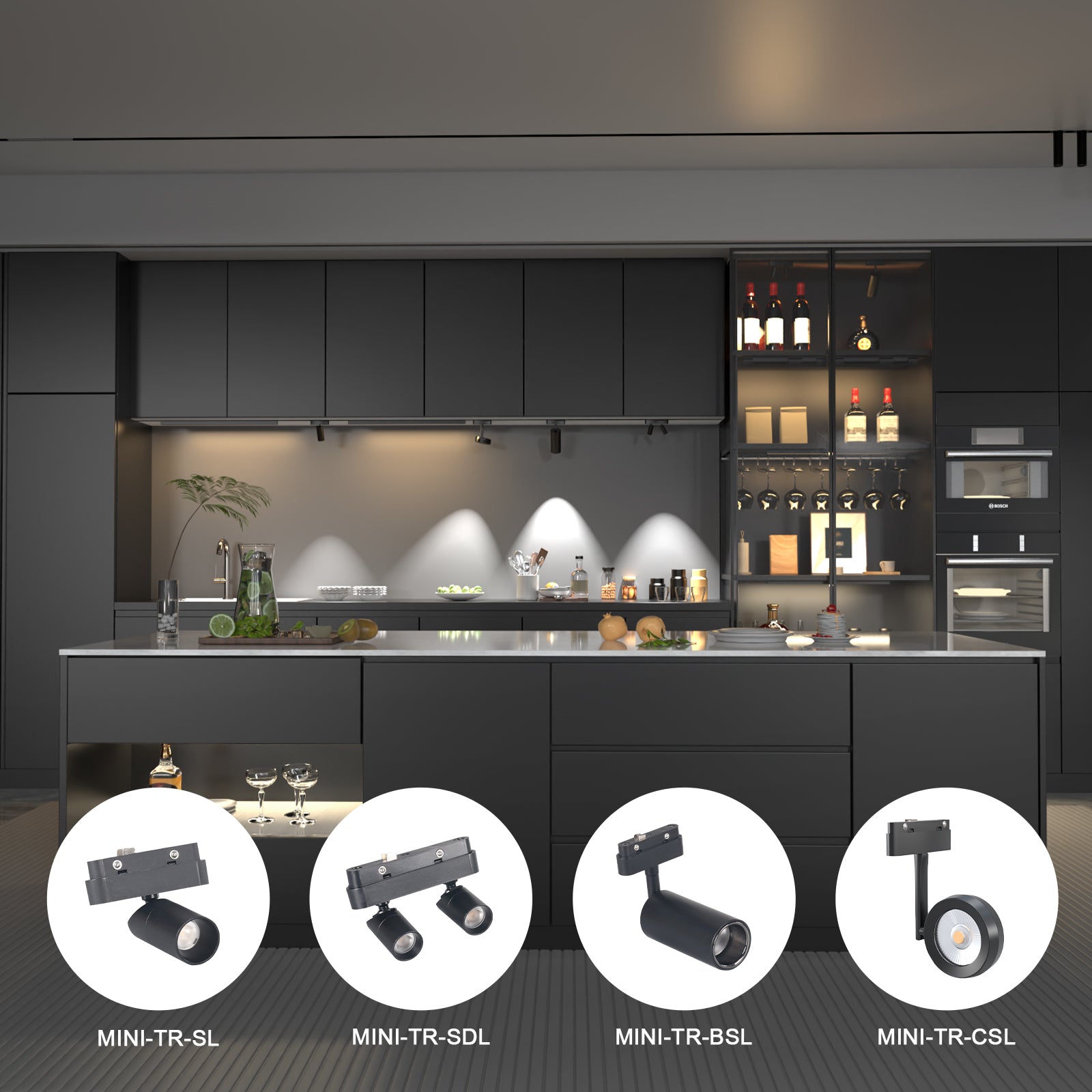

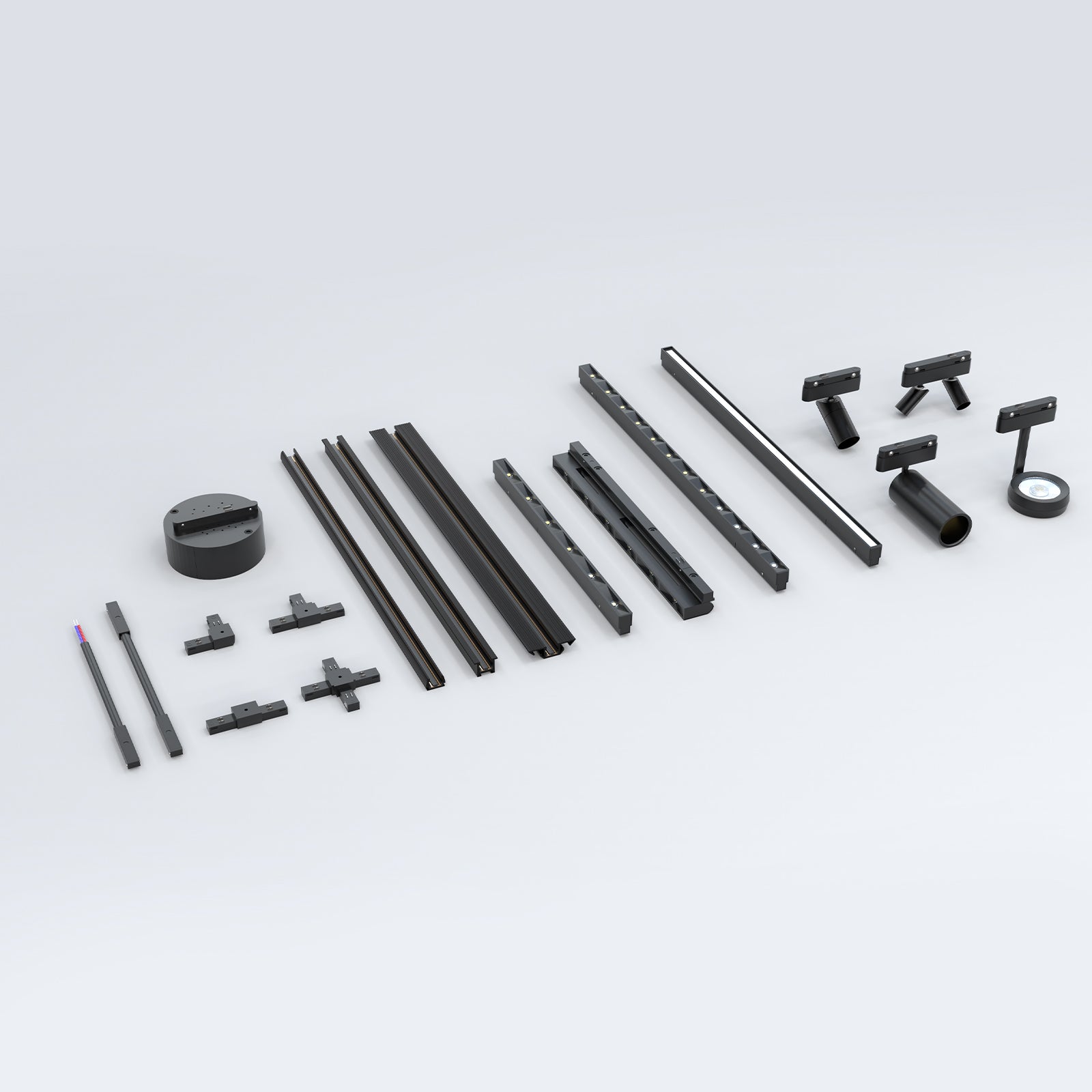

Luminaires

Complete luminaire family

All luminaires: DC24V, CCT 3000K/4000K/6000K, beam angle 15°/24°/36°. Black body.

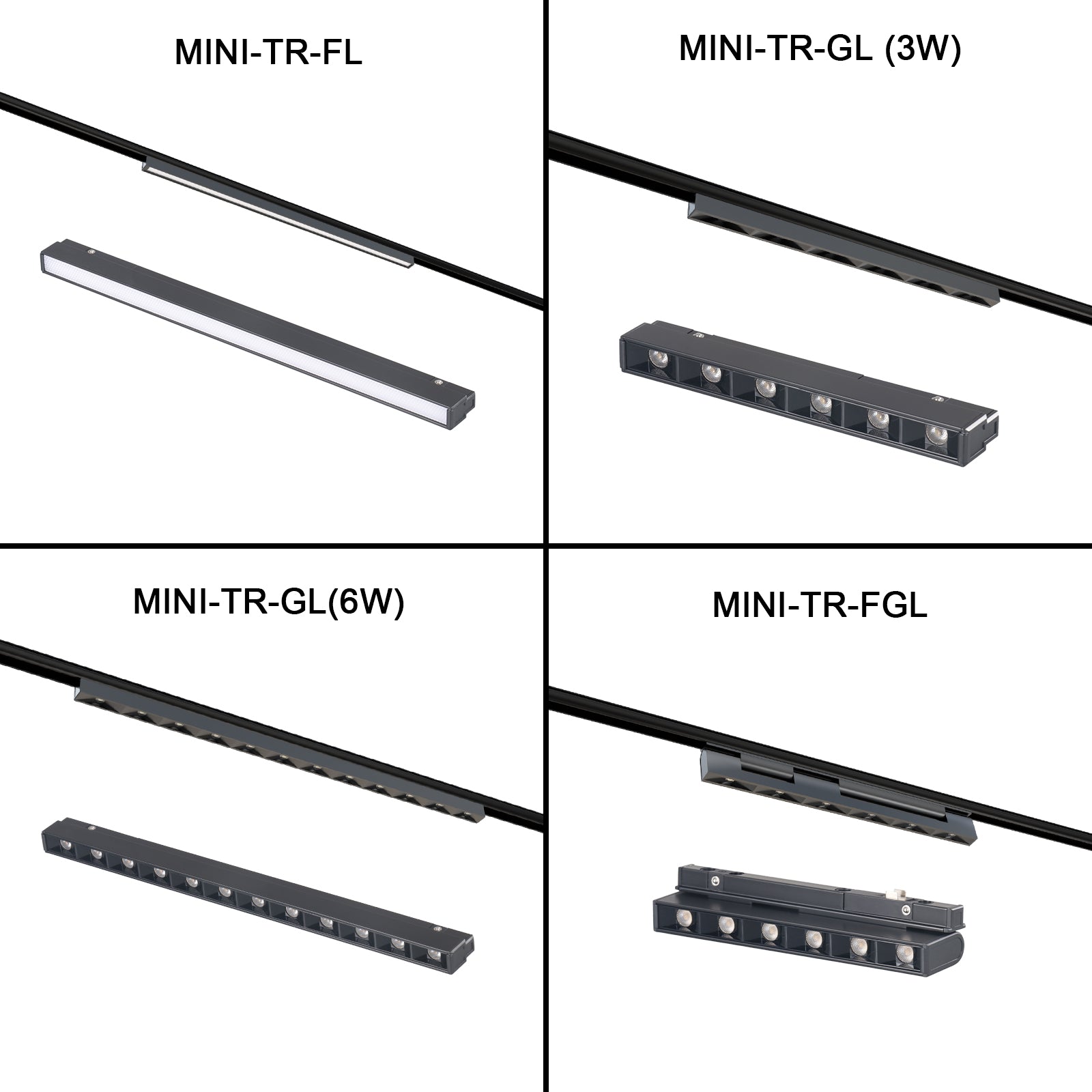

MINI-TR-FL

Flood Light

MINI-TR-FL: DC24V · 6W · L231.3×W11.8×H19.5mm
Lumen: 250 / 260 / 255 LM

MINI-TR-GL 3W

Grille Light 3W

MINI-TR-GL (3W): DC24V · 3W · L117.3×W11.8×H19.5mm
Lumen: 190 / 200 / 195 LM

MINI-TR-GL 6W

Grille Light 6W

MINI-TR-GL (6W): DC24V · 6W · L231.3×W11.8×H19.5mm
Lumen: 380 / 400 / 395 LM

MINI-TR-FGL

Fold Grille Light

MINI-TR-FGL: DC24V · 3W · L117×W11.8×H33mm
Lumen: 170 / 180 / 175 LM

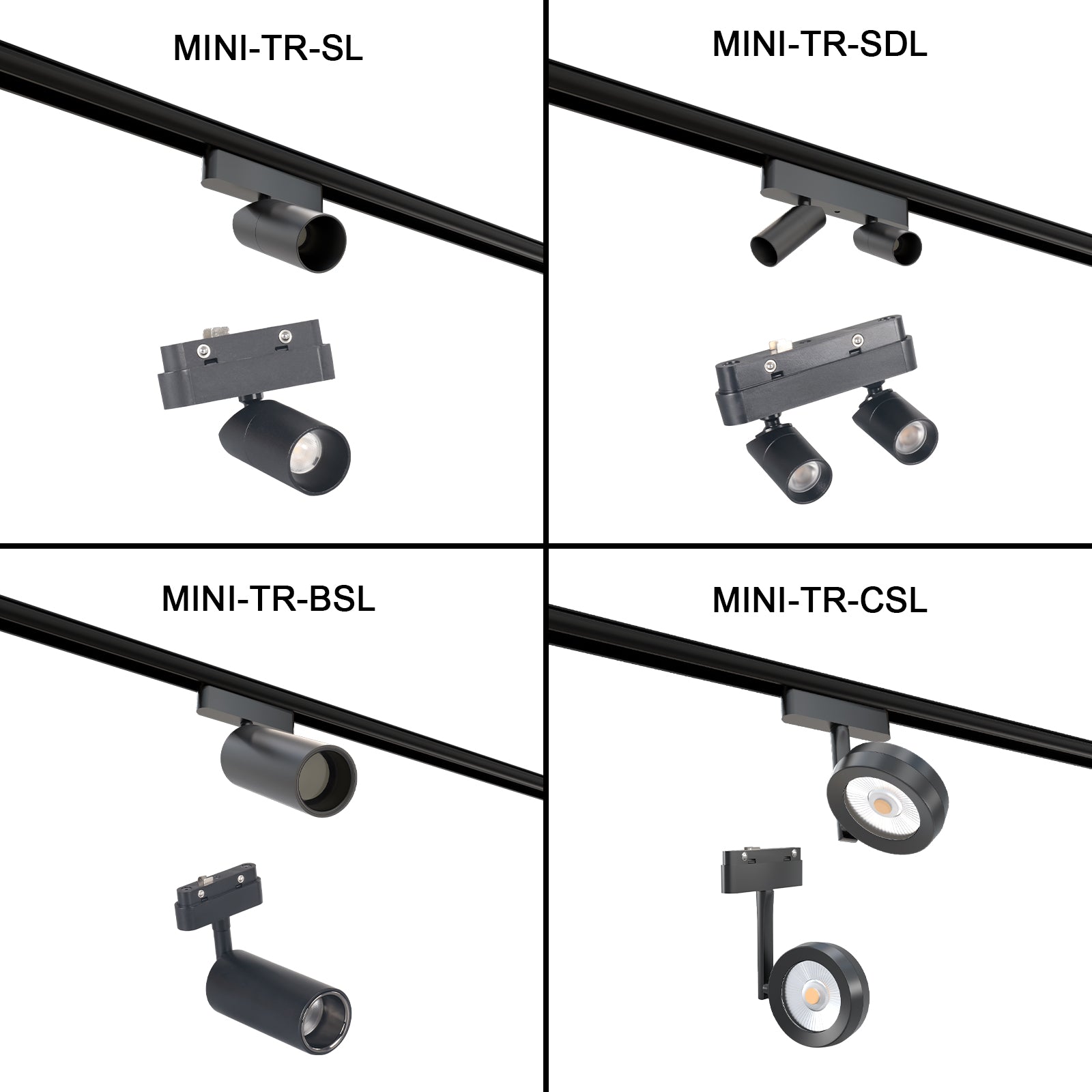

MINI-TR-SDL

Spot Light

MINI-TR-SDL: DC24V · 3W · Ø18×40mm
Lumen: 57 / 60 / 59 LM

MINI-TR-SL

Spot Double Light

MINI-TR-SL: DC24V · 3W · Ø15×29mm
Lumen: 185 / 190 / 186 LM

MINI-TR-BSL

Input Conductive Module

MINI-TR-BSL: DC24V · 3W · Ø30×65mm
Lumen: 242 / 255 / 251 LM

MINI-TR-CSL

Vertical Conductive Module

MINI-TR-CSL: Vertical connector module
Use: Power tap between track segments

Specification

Technical Parameters

System

Track series: MINI-TR Series — 10mm Mini Magnetic Track Light
Input voltage: DC 24V
Conductor: 2-conductor pure copper busbar
Mounting: Clip-on design (tool-free)

Track

MINI-TR01S: Surface · L1000/2000 × W15 × H10mm
MINI-TR01C: Corner · L1000/2000 × W35.2 × H10mm
MINI-TR01R: Recessed · L1000/2000 × W17.6 × H10.1mm
MINI-TR02 family: 02 / 02I / 02L / 02LW / 02T / 02X

Optical

CCT: 3000K · 4000K · 6000K
Beam angle: 15° · 24° · 36°
Luminous flux: See individual model specs

Accessories

Input conductive module: MINI-TR-BSL
Vertical conductive module: MINI-TR-CSL
Straight-through module: MINI-TR-connect

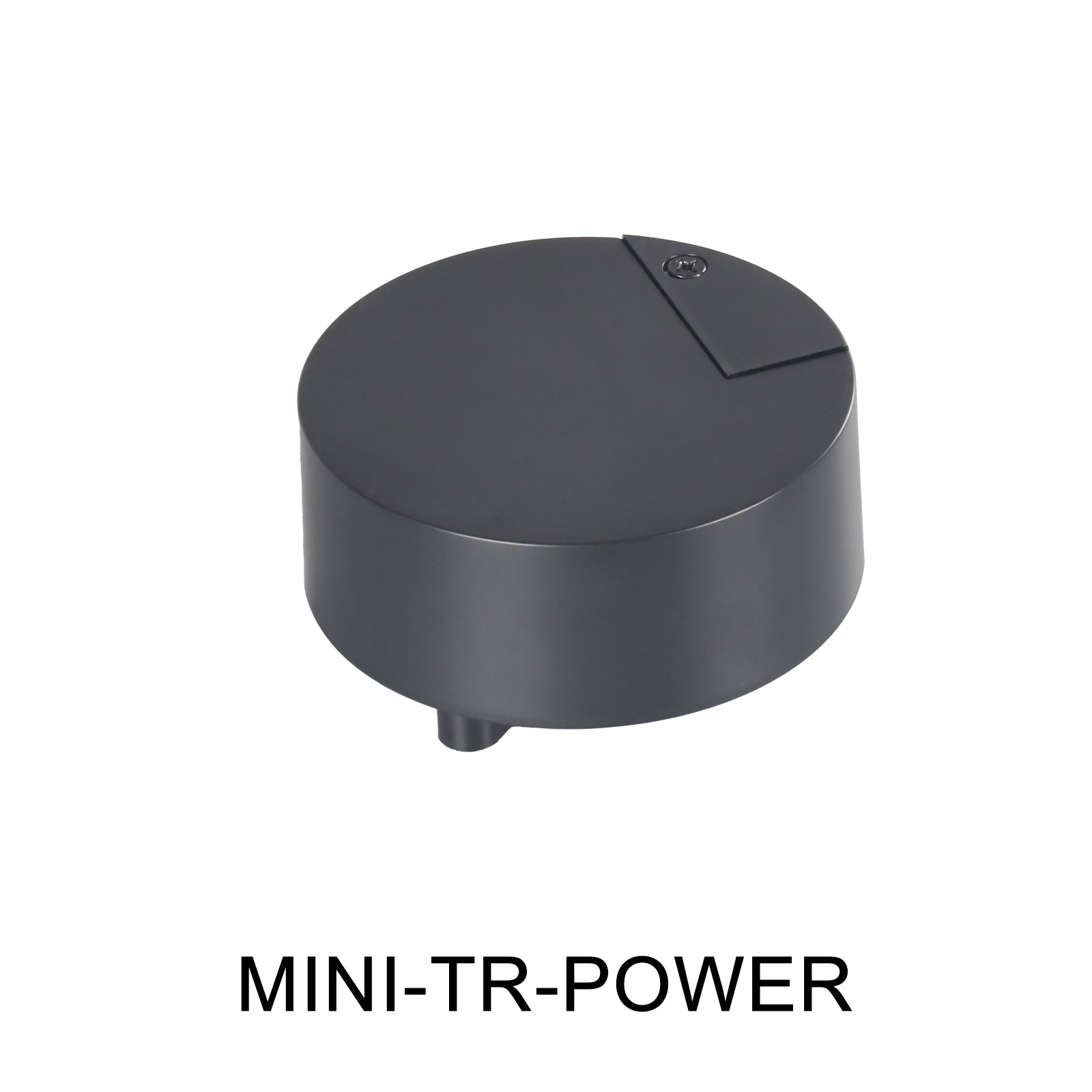

Power supply: MINI-TR-POWER
